СКУ: LX1G4TLSEA

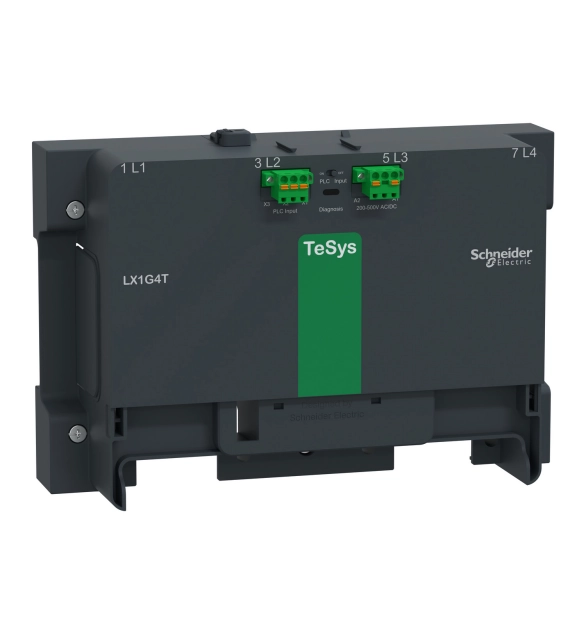

контролен модул, TeSys Giga, 200-500V AC/DC, за LC1G630-800/4P разширена версия
-
Brand
Schneider Electric
-
Voltage type for actuating
EV000509
-
Rated control supply voltage Us at DC
200
-
Rated control supply voltage Us at AC 50HZ
200
-
Rated control supply voltage Us at AC 60HZ
200
It is a 200-500V AC/DC control module for 4 poles TeSys Giga 630-800 contactor (advanced version). Coil designed for less energy consumption and wider voltage band-width, connection by spring terminal. It allows contactor operation with high AC-3 operating rates until 600 cycles/hour and environments until 60°C. Control module has connectors for connecting the coil control A1, A2 circuit & PLC output control, pole status and diagnostic signaling circuits. Local and Remote Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It is accessible from the front and maintained with very low down times. Unique QR code provides quick access to complete product data.
