СКУ: LX1G4QKUEN
контролен модул, TeSys Giga, 100-250V AC/DC, за LC1G115-225/4P стандартна версия
-
Brand
Schneider Electric
-
Voltage type for actuating
EV000509
-
Rated control supply voltage Us at DC
100
-
Rated control supply voltage Us at AC 50HZ
100
-
Rated control supply voltage Us at AC 60HZ
100

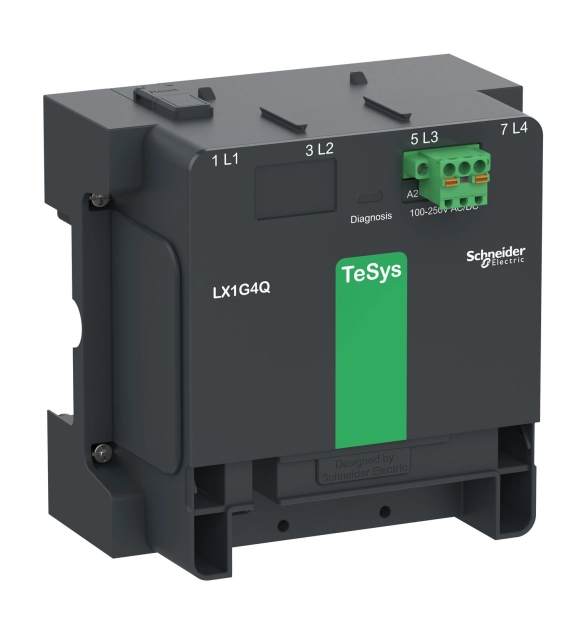

It is a 100-250V AC/DC control module for 4 poles TeSys Giga 115-225 contactor (standard version). Coil designed for less energy consumption and wider voltage band-width, connection by spring terminal. It allows contactor operation with high AC-3 operating rates until 600 cycles/hour and environments until 60°C. Control module has connectors for connecting the coil control A1, A2 circuit, pole status and diagnostic signaling circuits. Local Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It is accessible from the front and maintained with very low down times. Unique QR code provides quick access to complete product data.
