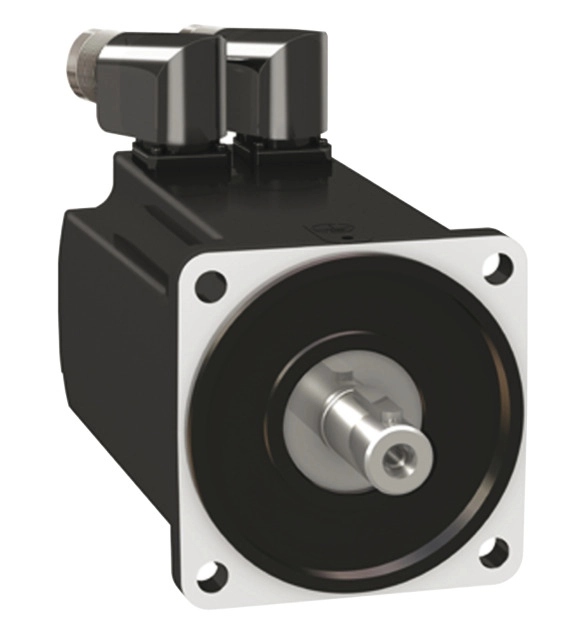

SCHNEIDER ELECTRIC Servo motor BMH, Lexium 32, 3.3Nm, 6000rpm, untapped shaft, without brake, IP54, 16bit encoder /PO:41288565/

This product is part of the Lexium 32 range, an offer of servo drives from 0.15kW to 11kW and associated servo motors. This servo motor has a maximum mechanical speed of 6000RPM, a continuous stall torque of 3.3Nm, an untapped shaft end, and no holding brake. It is equipped with a Single-turn SinCos Hiperface® feedback with 32768points/turn speed feedback resolution. It is a servo motor with a rated supply voltage of 480V, a continuous stall current of 3.15A and a continuous power of 1.76W. The shaft dimensions are 19mm (diameter) x 40mm (length). It is furnished 2x rotatable right-angled connectors for power and encoder connections. It is an IP54 standard rated product (shaft and housing). It measures 128mm long without holding break, 170mm long with holding break, 139.5mm high, and its flange size is 100mm. It weighs 3.34kg. BMH servo motors associated with the Lexium 32 servo drive are intended for applications such as Packaging, Textile, gantry cranes, Hoists. Lexium BMH servo motors conform to international standards IEC/EN 61800-5-1, IEC/EN 61800-3, are UL and CSA certified, and CE marked. This motor is designed to be compatible with Lexium 32 servo drive, encoder and power cables, optional IP67 conformity kit, gearbox option and braking resistor. It installs on 4x holes (5mm diameter), the circle diameter of the mounting holes is 115mm. Lexium 32 is a servo drive range providing drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range includes four servo drive models with power ratings from 0.15kW to 11kW, and two servo motor ranges, BMH and BSH series.
