СКУ: C5PFM

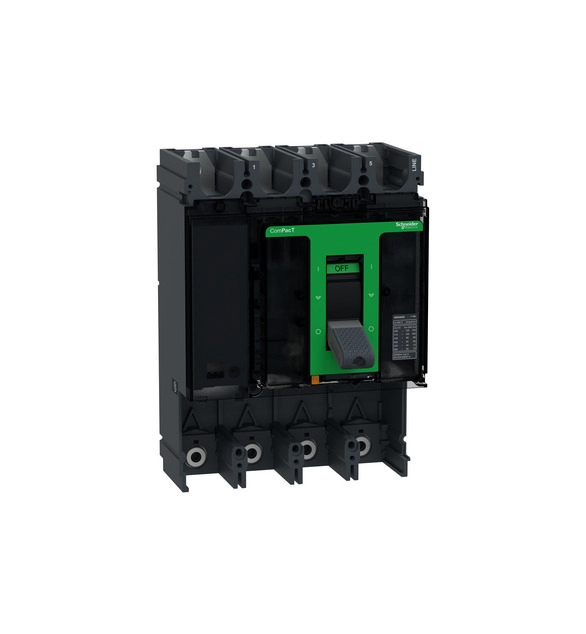

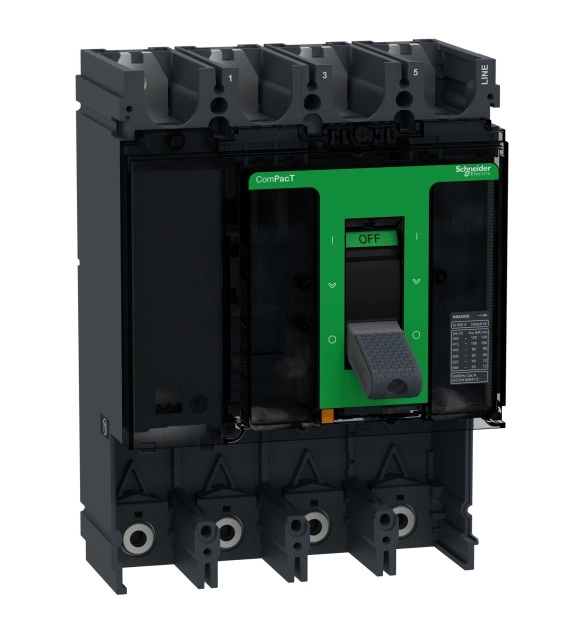

Контролен блок MicroLogic 5.0P, ComPacT NS630b до NS1600 фиксиран и ръчно управление, избирателни защити
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Device construction
EV009211
-
Number of auxiliary contacts as normally closed contact
-
Number of auxiliary contacts as change-over contact
-
Number of auxiliary contacts as normally open contact
-
Motor drive integrated
FALSE
-
Degree of protection (IP)
EV006415
-
Number of poles
4
-
Rated permanent current Iu
630
-
Complete device with protection unit
FALSE
-
Type of control element
EV000421
-
Rated voltage
690
-
Position of connection for main current circuit
EV007926
-
Integrated earth fault protection
FALSE
-
Motor drive optional
TRUE
-
Suitable for DIN rail (top hat rail) mounting
FALSE
-
With switched-off indicator
TRUE
-
With integrated under voltage release
FALSE
-
DIN rail (top hat rail) mounting optional
TRUE
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
36
This device is an electronic control unit MicroLogic 5.0E for ComPacT NS630-NS3200 circuit breakers, fixed and manually operated. ComPacT NS is designed to optimize space and breaking capacity, it is an optimal choice for all standard and specific applications. MicroLogic control unit has a new design and colour (dark grey). The control unit rating is fixed by an additional long time rating plug which has to be ordered separately through the product selector. This control unit has selective protections and is designed to protect power circuits and loads. MicroLogic 5.0E control unit provides an overload protection (true rms and adjustable long time protection). MicroLogic 5.0E control unit provides adjustable short-circuit protections (rms short time and instantaneous protections). The control unit rating is fixed by an additional long time rating plug which has to be ordered separately through the product selector. MicroLogic 5.0E is equipped with a digital LCD screen and displays energy (energy meter) and rms values of currents. MicroLogic E type indicates overloads with an alarm LED and is able to display the trip cause through 4 others LEDs. MicroLogic E type is equipped with a digital LCD screen that displays the active energy with 2% accuracy. ComPacT is compliant with IEC 60947-1 and IEC60947-2 international standards. ComPacT NS can be integrated within Schneider Electric EcoStruxure Power architecture. ComPacT NS is part of the global Schneider Electric Environmental Program.
