СКУ: A9D87425

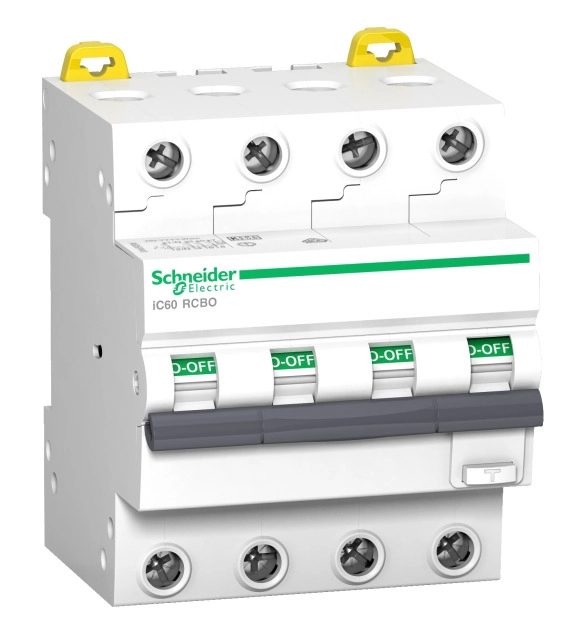

Kомбинирана дефектнотокова защита (RCBO), Acti9 iC60, 4P, 25A, B крива, 6000A/6kA, A тип, 30mA
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Concurrently switching neutral conductor
FALSE
-
Width in number of modular spacings
4
-
Rated voltage
400
-
Flush-mounted installation
FALSE
-
Connectable conductor cross section multi-wired
1
-
Rated current
25
-
Number of poles (total)
4
-
Number of protected poles
4
-
Release characteristic
EV000074
-
Ambient temperature during operating
-25
-
Anti-nuisance tripping version
FALSE
-
Leakage current type
EV000896
-
Rated fault current
0.03
-
Surge current capacity
0.25
-
Voltage type
EV000460
-
Connectable conductor cross section solid-core
1
-
Over voltage category
3
-
Rated insulation voltage Ui
500
-
Frequency
EV008013
-
Pollution degree
2
-
Rated impulse withstand voltage Uimp
4
-
Built-in depth
45
-
Disconnection characteristic
EV003978
-
Rated short-circuit breaking capacity Icn according to EN 61009-1
6
-
Rated short-circuit breaking capacity according to EN 61009
6
-
With interlocking device
FALSE
-
Current limiting class
1
-
Rated short-circuit breaking capacity according to IEC 60947-2
6
This Acti9 iC60 product is a modular residual current breaker with overcurrent protection (RCBO). It is a 4P circuit breaker with 4 protected poles, 25A rated current, and a B tripping curve. The earth-leakage protection class is A type with a sensitivity of 30mA, and the earth-leakage protection time delay is instantaneous. The rated short-circuit breaking capacity is 6000A at 380VAC to 415VAC, conforming to EN/IEC 61009-2-1 standard, and 6kA at 380VAC to 415VAC, conforming to EN/IEC 60947-2 standard. Its unique VisiTrip indicator reduces intervention time by displaying the faulty circuit. The VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast-closing mechanism independent of manual operation improves its service life. This product complies with EN/IEC 60947-2 and EN/IEC 61009-2-1 standards. The electrical endurance goes up to 10000 cycles, and the mechanical endurance goes up to 20000 cycles. The rated operational voltage is from 380VAC to 415VAC with an operating frequency of 50Hz. The rated insulation voltage is 500VAC, and the rated impulse withstand voltage is 4kV. It can be clipped on a DIN rail. The width in 9mm pitches is 8. The dimensions are (W) 72mm x (H) 86mm x (D) 78mm. The product colour is white (RAL 9003). The weight is 423g. It offers reliable protection with an IP20 rating on its terminals, which is enhanced to IP40 when placed in a modular enclosure. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 70°C.
