Контролен блок MicroLogic 5.0, ComPact NS630b/NS3200, фиксиран и изваждаем, избирателни защити (LSI) | Spark & Co
  • 3D
  • 3D
|

СКУ: 33511

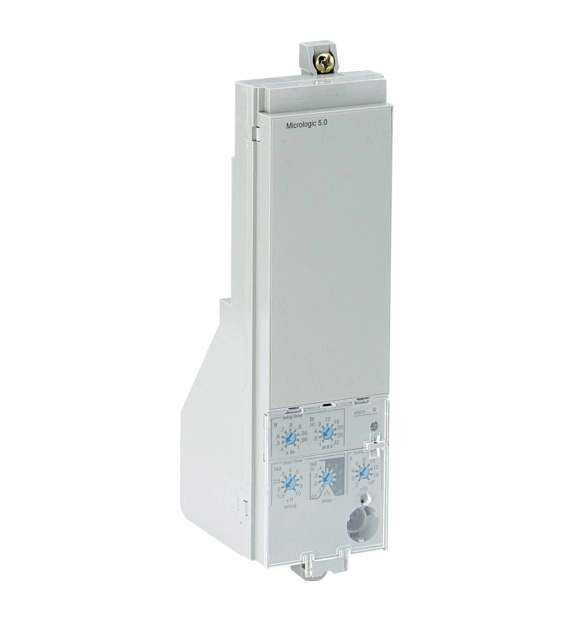

Контролен блок MicroLogic 5.0, ComPact NS630b/NS3200, фиксиран и изваждаем, избирателни защити (LSI)

  • Brand
    Schneider Electric
  • Device construction
    EV009211
  • Motor drive optional
    FALSE
  • Degree of protection (IP)
    EV006415
  • Number of poles
    4
  • Type of electrical connection of main circuit
    EV008864
  • Complete device with protection unit
    FALSE
  • DIN rail (top hat rail) mounting optional
    FALSE
  • Rated voltage
    690
  • Position of connection for main current circuit
    EV007926
  • Integrated earth fault protection
    FALSE
  • Suitable for DIN rail (top hat rail) mounting
    FALSE
  • Type of control element
    EV000554
  • With switched-off indicator
    TRUE
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    70
  • With integrated under voltage release
    FALSE
  • Motor drive integrated
    TRUE
  • Rated permanent current Iu
    1250
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as change-over contact
  • Number of auxiliary contacts as normally open contact

Micrologic 5.0A (Ammeter) is an electronic trip unit used on Compact NS630b to NS3200 circuit breakers. This control unit has a selective protection and is designed to protect power circuits and loads. It embeds adjustable long time protection against overloads. It provides also adjustable short-time protection and instantaneous protection against short-circuits. Micrologic 5.0A indicates overloads with an Alarm LED. It is able to display the trip cause through 3 others LEDs. Micrologic 5.0A is equipped with a digital LCD screen that displays the true RMS current values with 1.5% accuracy. This trip unit can be associated with Compact NS basic frame.
