СКУ: HMIYP6MPETHCTO

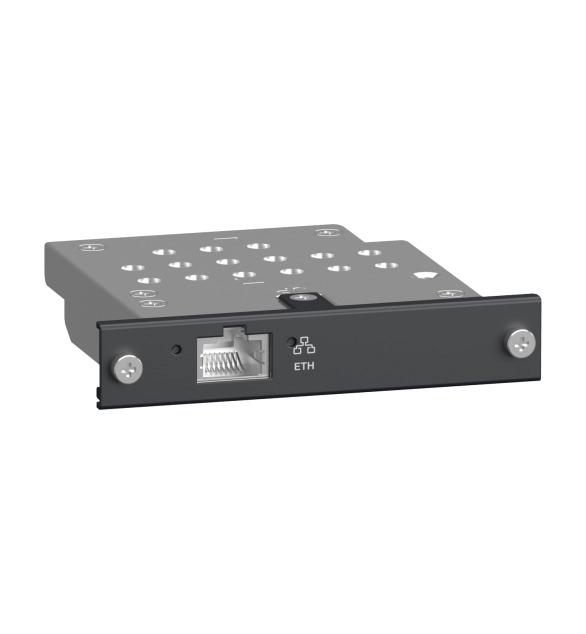

Ethernet интерфейсен модул, Harmony P6, опция за разширение, GbE IEEE1588, за конфигурирани продукти
-
Brand
Schneider Electric
-
Height
60
-
RAL-number
9003
-
Colour
EV000202
-
Width
51
-
Degree of protection (IP)
EV006420
-
Length
2000
-
Flexible
FALSE
-
Number of conductors (without earthing)
4
-
Rated voltage at AC 50 Hz
230
-
Model
EV003602
-
Number of poles
6
-
Rated current at AC 50 Hz
40
-
Number of tap-off units
3
This is a straight length for Canalis KBB busbar trunking. Canalis KBB is designed for lighting and power socket distribution. The rated operational current is 25A at 35°C. The rated operational voltage is from 230VAC to 400VAC 50/60Hz. This straight length is made of 3 tap-off outlets maximum spaced every meter on the main circuit (front), and 2 tap-off outlets maximum on the adjacent circuit (rear). It embeds 2 independent electrical circuits with L+N+PE polarity. This feed unit is delivered with an optional remote control circuit made of 2 conductors, and is able to transport and distribute DALI protocol for lighting management. It provides IP55 protection conforming to IEC 60529 standard, which guarantees trunking protection against splashes and dust. It provides IK06 protection conforming to IEC 62262 standard against external mechanical impacts. The length is 3m, and the section is 46mm x 46mm. Sold in lots of 6 units. It is made off RAL 9003 white lacquered sheet steel. Canalis KBB is compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2).
