СКУ: A9L40401

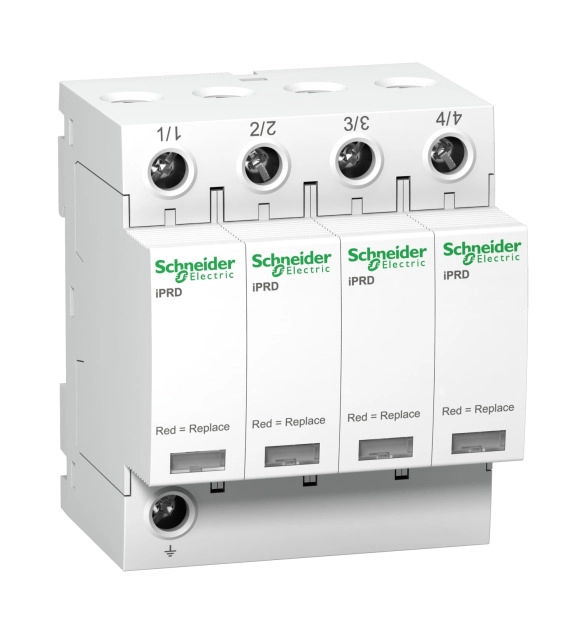

Катоден отводител PRD 40R 40KA 340V 4P with report A
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Integrated short-circuit protection
FALSE
-
System configuration TN-C
TRUE
-
Leakage-current free
FALSE
-
System configuration DC
FALSE
-
System configuration TN
FALSE
-
System configuration IT
FALSE
-
System configuration TT
FALSE
-
System configuration TN-S
FALSE
-
Signalling at the device
EV000428
-
System configuration TN-C-S
FALSE
-
Mounting method
EV005503
-
System configuration other
FALSE
-
With remote signalling contact
TRUE
-
Integrated backup fuse
FALSE
-
Category type 2
TRUE
-
Max. continuous voltage AC
350
-
Construction size
EV007011
-
Voltage protection level
1.6
-
Max. discharge surge current (8/20)
40
-
Number of conductors (without earthing)
4
-
Max. overcurrent protection device, series connection (fuse)
80
-
Short-circuit breaking capacity (Isccr)
50
-
Max. conductor cross section solid (solid, stranded)
25
-
Max. conductor cross section flexible (fine-strand)
16
-
Nominal discharge surge current (8/20)
15
-
Nominal voltage AC
350
-
Max. overcurrent protection device, parallel connection (fuse)
63
-
Voltage protection level N-PE
1.6
This Acti9 iPRD40r surge arrester protects 4P installations. It allows quick replacement of damaged cartridges. This Type 2 device is recommended for high risk level in incoming panel board. It offers remote reporting of the "cartridge must be changed" message. It can be turned over to allow the phase/neutral/earth cables to enter through either the top or the bottom. The associated circuit breaker Isc breaking capacity can go up to 50kA. It is compatible with TT and TN-S earthing system. The Uc maximum continuous operating voltage in common mode (L/PE or N/PE) is 350VAC. The Up maximum voltage protection level in common mode (L/PE or N/PE) is 1.4kV. The Ue rated operational voltage is 230VAC +/- 10%. The product colour is white (RAL9003).The dimensions are (W) 72mm x (H) 85mm x (D) 69mm. The weight is 422g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product is compliant with EN 61643-11 and IEC 61643-11 standards.
