КАТОДЕН ОТВОДИТЕЛ PF 40 40 KA 340V 3P | Spark & Co
  • 3D
|

СКУ: A9L15582

КАТОДЕН ОТВОДИТЕЛ PF 40 40 KA 340V 3P

  • Brand
    Schneider Electric
  • Degree of protection (IP)
    EV006405
  • Integrated short-circuit protection
    FALSE
  • System configuration TN-C
    TRUE
  • Leakage-current free
    FALSE
  • System configuration DC
    FALSE
  • System configuration TN
    FALSE
  • System configuration IT
    FALSE
  • Voltage protection level
    1.5
  • Number of conductors (without earthing)
    3
  • System configuration TT
    FALSE
  • System configuration TN-S
    FALSE
  • Signalling at the device
    EV000428
  • Nominal voltage AC
    400
  • System configuration TN-C-S
    FALSE
  • Mounting method
    EV005503
  • System configuration other
    FALSE
  • Integrated backup fuse
    FALSE
  • Category type 2
    TRUE
  • With remote signalling contact
    FALSE
  • Construction size
    EV007011
  • Max. discharge surge current (8/20)
    40
  • Max. overcurrent protection device, series connection (fuse)
    40
  • Max. overcurrent protection device, parallel connection (fuse)
    40
  • Max. conductor cross section solid (solid, stranded)
    25
  • Max. conductor cross section flexible (fine-strand)
    16
  • Nominal discharge surge current (8/20)
    15
  • Max. continuous voltage AC
    340

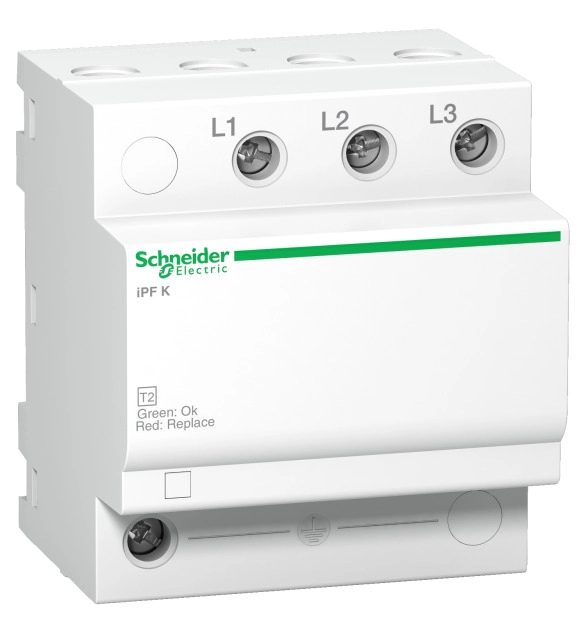

This Acti9 iPF K 40 product is a modular surge arrester. It protects 3P installations. The Imax maximum discharge current is 40kA .The In nominal discharge current is 15kA. The multi-pole single-piece surge arrester range is adapted for TT earthing systems. This type 2 incoming protection surge arrester is recommended for a high risk level. The Uc maximum continuous operating voltage in common mode (between neutral and earth) is 340VAC. The Up Voltage protection level in common mode (between phase and earth) is 1.5kV. The Ue rated operational voltage is 230VAC or 400VAC +/- 10%. The product colour is white (RAL9003).The dimensions are (W) 72mm x (H) 81mm x (D) 69mm. The weight is 335g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product is compliant with IEC 61643-11 and EN 61643-11 standards.
