Катоден отводител IQUICK PRD 3P 40R WITH REMOTE TRANSFER S | Spark & Co
  • 3D
|

СКУ: A9L16293

Катоден отводител IQUICK PRD 3P 40R WITH REMOTE TRANSFER S

  • Brand
    Schneider Electric
  • Degree of protection (IP)
    EV006405
  • System configuration TN-C
    TRUE
  • Leakage-current free
    FALSE
  • System configuration DC
    FALSE
  • System configuration TN
    FALSE
  • Number of conductors (without earthing)
    3
  • System configuration TT
    FALSE
  • System configuration TN-S
    FALSE
  • Signalling at the device
    EV000428
  • Nominal voltage AC
    400
  • Max. conductor cross section solid (solid, stranded)
    35
  • Max. conductor cross section flexible (fine-strand)
    35
  • System configuration TN-C-S
    FALSE
  • Mounting method
    EV005503
  • System configuration other
    FALSE
  • With remote signalling contact
    TRUE
  • Integrated backup fuse
    FALSE
  • Category type 2
    TRUE
  • Max. continuous voltage AC
    350
  • Nominal discharge surge current (8/20)
    20
  • Construction size
    EV000154
  • System configuration IT
    TRUE
  • Integrated short-circuit protection
    TRUE
  • Max. discharge surge current (8/20)
    40
  • Voltage protection level L-N
    2.5
  • Short-circuit breaking capacity (Isccr)
    20
  • Voltage protection level
    2
  • Voltage protection level N-PE
    2

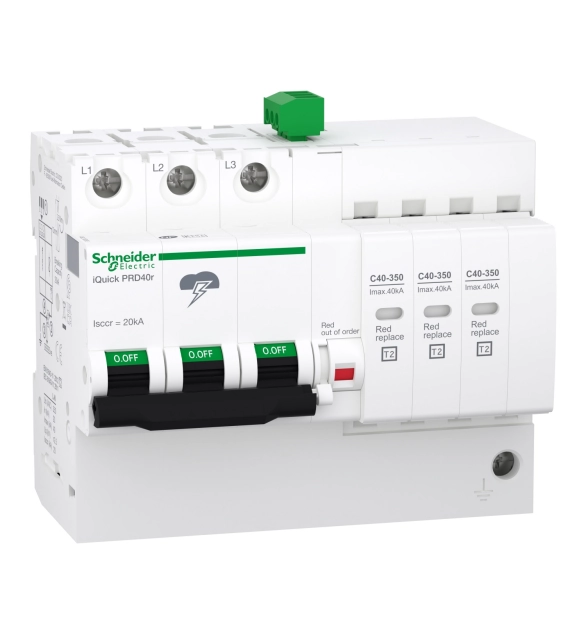

This Acti9 iQuick PRD surge arrester protects 3P installations. It allows quick replacement of damaged cartridges. This Type 2 device autoprotected by an integrated circuit-breaker is recommanded for high risk level in incoming panel board. It offers remote reporting of the "cartridge must be changed" message. This prewired surge arrester allows quick replacement of withdrawable cartridges when they are damaged. It incorporates its end of life safety disconnector. The Isc integrated breaking capacity is 20kA. This Acti9 iQuick PRD40r is compatible with TT and TN-S earthing system. The Uc maximum continuous operating voltage in common mode (between phase and earth) is 350VAC. The Up Voltage protection level in common mode (between phase and earth) is 2kV. The Ue rated operational voltage is 230VAC +/- 10%. The product colour is white (RAL9003).The dimensions are (W) 113.6mm x (H) 94mm x (D) 75.9mm. The weight is 690g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 70°C. This product is compliant with EN 61643-11 and IEC 61643-11 standards.
