СКУ: EZ9L33720

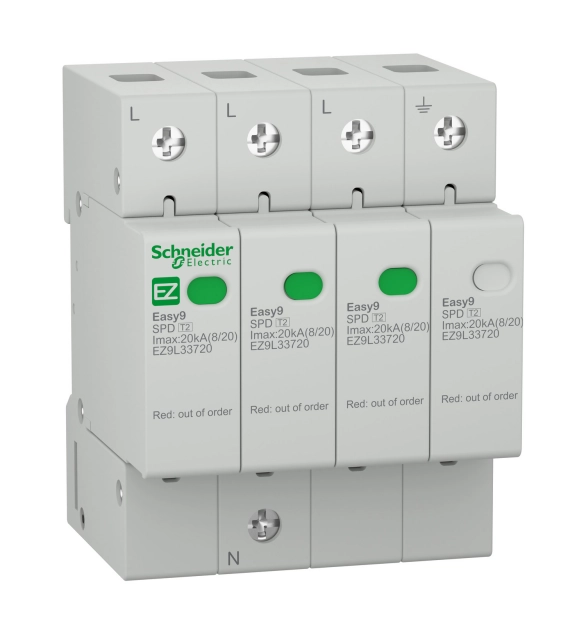

Катоден отводител Easy9 Surge Arrestor T2 3P-N 20kA 400V
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Integrated short-circuit protection
FALSE
-
Leakage-current free
FALSE
-
System configuration DC
FALSE
-
System configuration TN
FALSE
-
System configuration IT
FALSE
-
Number of conductors (without earthing)
3
-
Signalling at the device
EV000428
-
Nominal voltage AC
400
-
Max. conductor cross section solid (solid, stranded)
35
-
Max. conductor cross section flexible (fine-strand)
35
-
System configuration TN-C-S
FALSE
-
Mounting method
EV005503
-
System configuration other
FALSE
-
Integrated backup fuse
FALSE
-
Category type 2
TRUE
-
System configuration TN-C
FALSE
-
System configuration TT
TRUE
-
With remote signalling contact
FALSE
-
System configuration TN-S
TRUE
-
Construction size
EV007011
-
Max. discharge surge current (8/20)
20
-
Max. continuous voltage AC
275
-
Nominal discharge surge current (8/20)
10
-
Voltage protection level L-N
1.3
-
Voltage protection level
1.3
-
Voltage protection level N-PE
1.3
This Easy9 product is a surge arrester. This product, according to Imax maximum discharge current of 20kA, is recommended for a medium risk level. It can be associated with a 25A and C curve tripping circuit breaker. The Uc maximum continuous operating voltage is 275VAC. The In nominal discharge current is 10kA. The Up maximum voltage protection level is 1.3kV. It can be mounted on DIN rail for modular installation. Its width is 8 pitches of 9mm. According to IEC 60529 standard, the degree of protection is IP40 in modular enclosure. The operating temperature is -5°C to 60°C. The storage temperature is -5°C to 70°C. This product complies with IEC 61643-11 standard.
