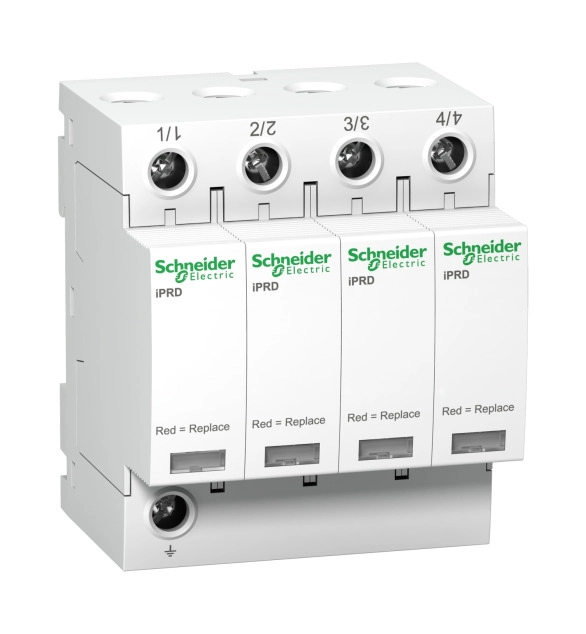

Катоден отводител - 4P - IT - 460V - с дистанционна комуникация

• Brand
  Schneider Electric
• Degree of protection (IP)
  EV006405
• Integrated short-circuit protection
  FALSE
• Leakage-current free
  FALSE
• System configuration DC
  FALSE
• System configuration TN
  FALSE
• System configuration TT
  FALSE
• System configuration TN-S
  FALSE
• Signalling at the device
  EV000428
• Nominal voltage AC
  400
• System configuration TN-C-S
  FALSE
• Mounting method
  EV005503
• System configuration other
  FALSE
• With remote signalling contact
  TRUE
• Integrated backup fuse
  FALSE
• Category type 2
  TRUE
• System configuration TN-C
  FALSE
• Construction size
  EV007011
• System configuration IT
  TRUE
• Max. discharge surge current (8/20)
  40
• Number of conductors (without earthing)
  4
• Max. overcurrent protection device, series connection (fuse)
  80
• Short-circuit breaking capacity (Isccr)
  50
• Max. conductor cross section solid (solid, stranded)
  25
• Max. conductor cross section flexible (fine-strand)
  16
• Nominal discharge surge current (8/20)
  15
• Max. continuous voltage AC
  460
• Max. overcurrent protection device, parallel connection (fuse)
  63
• Voltage protection level L-N
  2
• Voltage protection level
  2.2
• Voltage protection level N-PE
  2.2
