СКУ: A9L65201
Катоден отводител - 2P - 350V - с дистанционна комуникация
-
Brand
Schneider Electric
-
Number of poles
1
-
Degree of protection (IP)
EV006405
-
Concurrently switching neutral conductor
FALSE
-
Width in number of modular spacings
1
-
Lockable
TRUE
-
Mounting method
EV000242
-
For fuse size
EV011649
-
Built-in depth
44
-
With optical defect indication
TRUE
-
Nominal voltage
400

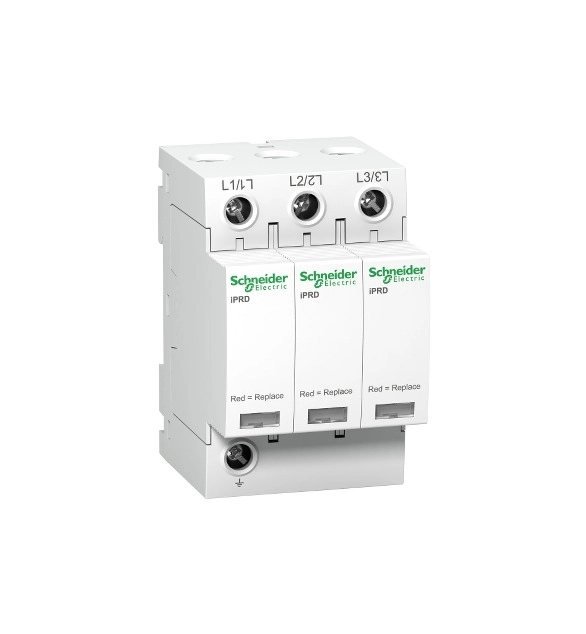

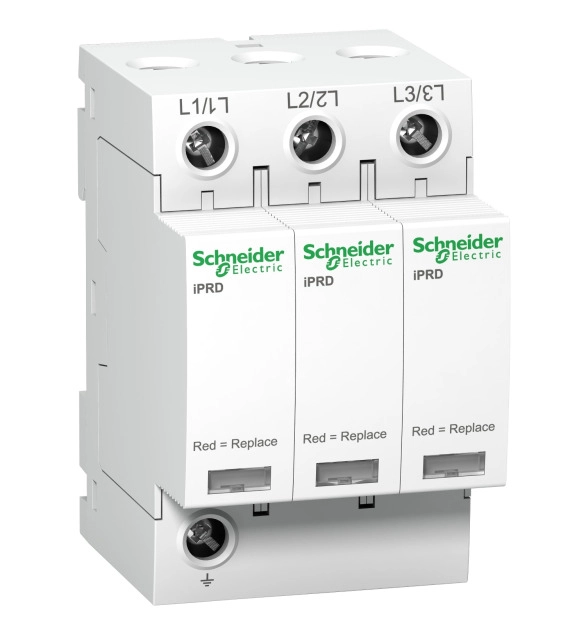

This Acti9 iPRD65r surge arrester protects 3P installations. It allows quick replacement of damaged cartridges. This Type 2 device is recommended for very high risk level and incoming panel board. It offers remote reporting of the "cartridge must be changed" message. It can be turned over to allow the phase/neutral/earth cables to enter through either the top or the bottom. The associated circuit breaker Isc breaking capacity can go up to 50kA. It is compatible with TT and TN-S earthing system. The Uc maximum continuous operating voltage in common mode (between phase and earth) is 460VAC. The Up Voltage protection level in common mode (between phase and earth) is 2.3kV. The Ue rated operational voltage is 230VAC or 400VAC +/- 10%. The product colour is white (RAL9003).The dimensions are (W) 54mm x (H) 85mm x (D) 69mm. The weight is 340g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product is compliant with EN 61643-11 and IEC 61643-11 standards.
