СКУ: A9L40281

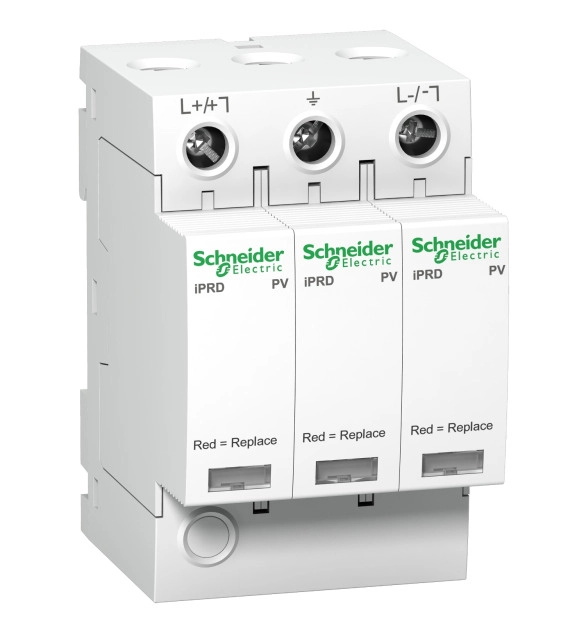

Катод. отводител IPRD 40R 1000PV 2P SURGE ARRESTER
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Integrated short-circuit protection
FALSE
-
Leakage-current free
FALSE
-
System configuration TN
FALSE
-
System configuration IT
FALSE
-
System configuration TT
FALSE
-
System configuration TN-S
FALSE
-
Signalling at the device
EV000428
-
Max. conductor cross section solid (solid, stranded)
35
-
Max. conductor cross section flexible (fine-strand)
35
-
System configuration TN-C-S
FALSE
-
Mounting method
EV005503
-
System configuration other
FALSE
-
With remote signalling contact
TRUE
-
Integrated backup fuse
FALSE
-
Category type 2
TRUE
-
System configuration TN-C
FALSE
-
Max. discharge surge current (8/20)
40
-
Nominal discharge surge current (8/20)
15
-
Number of conductors (without earthing)
2
-
Construction size
EV007000
-
System configuration DC
TRUE
-
Nominal voltage DC
1000
-
Max. PV-voltage
1000
-
Voltage protection level L-N
3.9
-
Voltage protection level
3.9
-
Max. continuous voltage DC
1000
-
Voltage protection level N-PE
3.9
This Acti9 iPRD-DC 40r direct current surge arresters protects 2P photovoltaic installations. It allows quick replacement of damaged cartridges. The Iscpv short circuit breaking capacity is 200A. The Itotal discharge current is 40kA. The In nominal discharge current is 15kA. This Type 2 device is recommended to protect against indirect lightning strikes. The surge arresters with r indication have remote transfer of the information Cartridge to be replaced. It can be turned over to allow the phase/neutral/earth cables to enter through either the top or the bottom. The Uc maximum continuous operating voltage is 1000VDC. The Up protection level is 3.9kV in differential mode and in common mode. The dimensions are (W) 54mm x (H) 85mm x (D) 69mm. The width in 9mm pitches is 4. The weight is 400g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product complies with EN/IEC 61643-31 and UTE C 61470-51 standards.
