СКУ: A9L40300
Катод. отводител iPRD 40 40 KA 350V 3P
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Integrated short-circuit protection
FALSE
-
System configuration TN-C
TRUE
-
Leakage-current free
FALSE
-
System configuration DC
FALSE
-
System configuration TN
FALSE
-
System configuration IT
FALSE
-
Voltage protection level
1.5
-
Number of conductors (without earthing)
3
-
System configuration TT
FALSE
-
System configuration TN-S
FALSE
-
Signalling at the device
EV000428
-
Max. conductor cross section solid (solid, stranded)
35
-
Max. conductor cross section flexible (fine-strand)
35
-
System configuration TN-C-S
FALSE
-
Mounting method
EV005503
-
System configuration other
FALSE
-
Integrated backup fuse
FALSE
-
Category type 2
TRUE
-
Max. continuous voltage AC
350
-
With remote signalling contact
FALSE
-
Max. discharge surge current (8/20)
40
-
Max. overcurrent protection device, series connection (fuse)
80
-
Short-circuit breaking capacity (Isccr)
50
-
Nominal discharge surge current (8/20)
15
-
Nominal voltage AC
350
-
Max. overcurrent protection device, parallel connection (fuse)
63
-
Construction size
EV007000

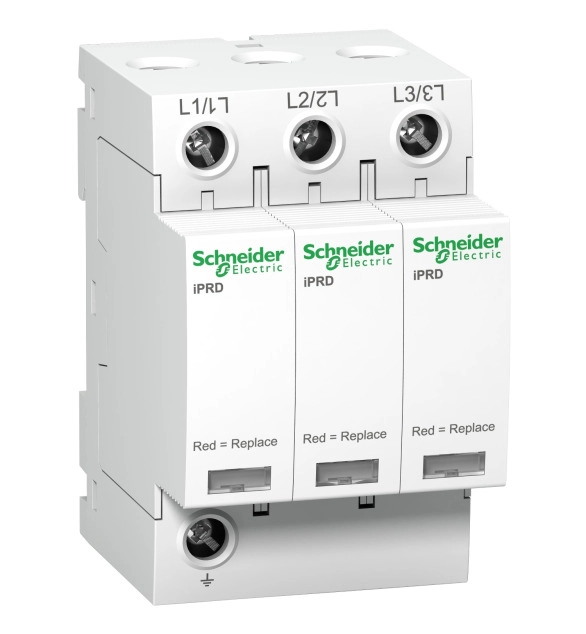

This Acti9 iPRD40 surge arrester protects 3P installations. It allows quick replacement of damaged cartridges. This Type 2 device is recommended for high risk level and incoming panel board. It can be turned over to allow the phase/neutral/earth cables to enter through either the top or the bottom. The associated circuit breaker Isc breaking capacity can go up to 50kA. This Acti9 iPRD40 is compatible with TT and TN-S earthing system. The Uc maximum continuous operating voltage in common mode (between phase and earth) is 350VAC. The Up maximum voltage protection level in common mode (between phase and earth) is 1.4kV. The Ue rated operational voltage is 230VAC +/- 10%. The product colour is white (RAL9003).The dimensions are (W) 54mm x (H) 85mm x (D) 69mm. The weight is 317g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product is compliant with EN 61643-11 and IEC 61643-11 standards.
