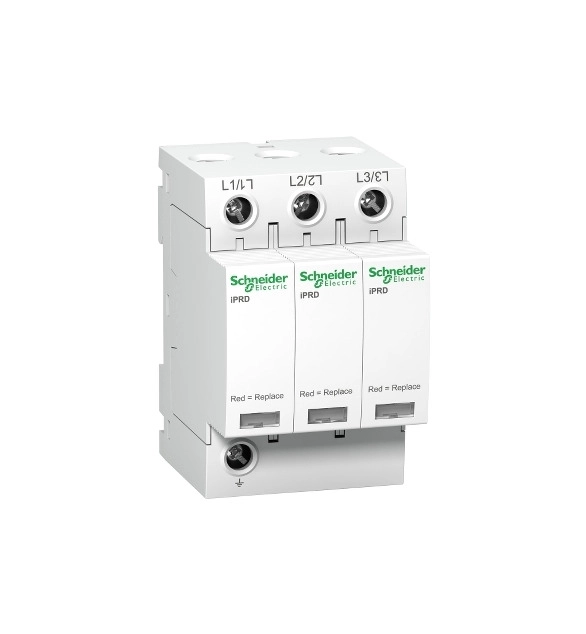

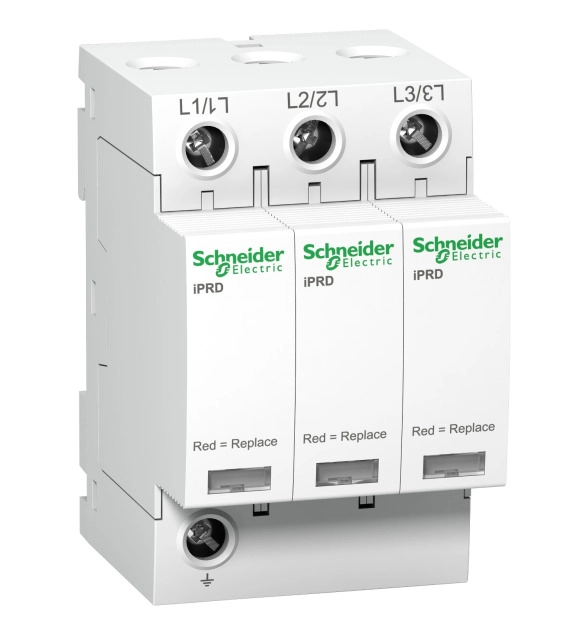

Катод. отводител Acti9 iPRD1 12.5r 3P 350V SPD

• Brand
  Schneider Electric
• Degree of protection (IP)
  EV006405
• Integrated short-circuit protection
  FALSE
• Leakage-current free
  FALSE
• System configuration DC
  FALSE
• System configuration TN
  FALSE
• System configuration IT
  FALSE
• Number of conductors (without earthing)
  3
• Signalling at the device
  EV000428
• Nominal voltage AC
  400
• Max. conductor cross section solid (solid, stranded)
  35
• Max. conductor cross section flexible (fine-strand)
  35
• System configuration TN-C-S
  FALSE
• Mounting method
  EV005503
• System configuration other
  FALSE
• Integrated backup fuse
  FALSE
• Category type 2
  TRUE
• Max. continuous voltage AC
  350
• System configuration TN-C
  FALSE
• System configuration TT
  TRUE
• With remote signalling contact
  FALSE
• System configuration TN-S
  TRUE
• Construction size
  EV007011
• Voltage protection level L-N
  1.1
• Max. overcurrent protection device, series connection (fuse)
  80
• Voltage protection level N-PE
  1.4
• Short-circuit breaking capacity (Isccr)
  50
• Max. overcurrent protection device, parallel connection (fuse)
  40
• Nominal discharge surge current (8/20)
  5
• Max. discharge surge current (8/20)
  20
• Voltage protection level
  1.1
