СКУ: SXWIPIOAA10001
Входен разширител, серия SpaceLogic IP-IO, 10 цифрови входа
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Networkable via radiografic (standard)
FALSE
-
Depth
65
-
Width
168
-
Supply voltage
24
-
Height
201
-
Output voltage
24
-
Number of channels/zone
7
-
Max. power per channel
22
-
Smart control
FALSE

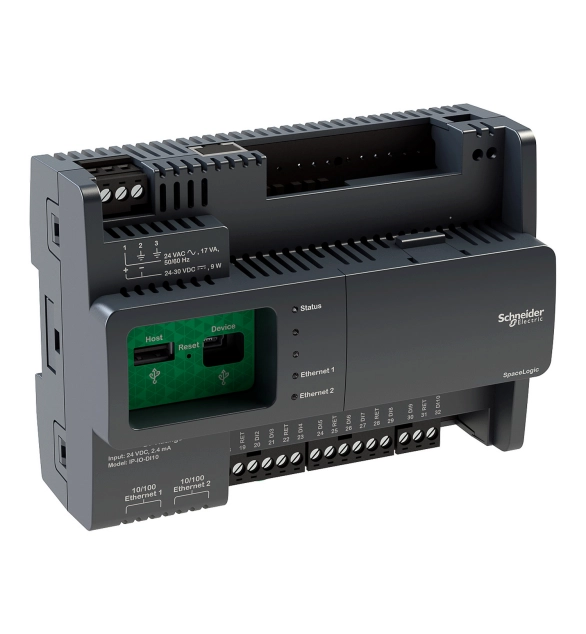

SpaceLogic IP-IO-DI10 is an IP expansion module providing I/O expansion to HVAC applications over BACnet/IP with a device profile of B-ASC. It can share its I/O resources across applications running in SpaceLogic servers, SpaceLogic IP controllers, or third-party systems. With local alarms and local trend logs, the module avoids unnecessary traffic over the network while being able to log important information locally. The IP-IO module is based on open protocols that simplify interoperability, IP configuration, and device management. It supports an optional display that provides insight and control of the inputs and outputs. There are three models with different I/O point count and a versatile mix of I/O point types that match a wide variety of applications. The IP-IO-DI10 model features 10 digital inputs. Its dimensions are 110 mm (4.3 in.) in height, 153 mm (6.0 in.) in width and 64 mm (2.5 in.) in depth. The IP-IO module supports an optional display (SXWMPCDSP10001). Available spart part is a DIN-rail end clip package (SXWDINEND10001). The IP-IO module supports an optional display (SXWMPCDSP10001). Available spart part is a DIN-rail end clip package (SXWDINEND10001).
