СКУ: C2534A250
Изключвателно устройство NSX250 AC 3P3D 250A 4.2AL за NSX250
-
Brand
Schneider Electric
-
Number of poles
3
-
Rated permanent current Iu
250
-
Type of motor protection
EV014005
-
Voltage type for actuating
EV009206
-
Short-circuit release function
EV003977
-
With ground fault protection function
FALSE
-
Overload release current setting
100
-
Initial value of the undelayed short-circuit release - setting range
3000
-
End value adjustment range undelayed short-circuit release
3000

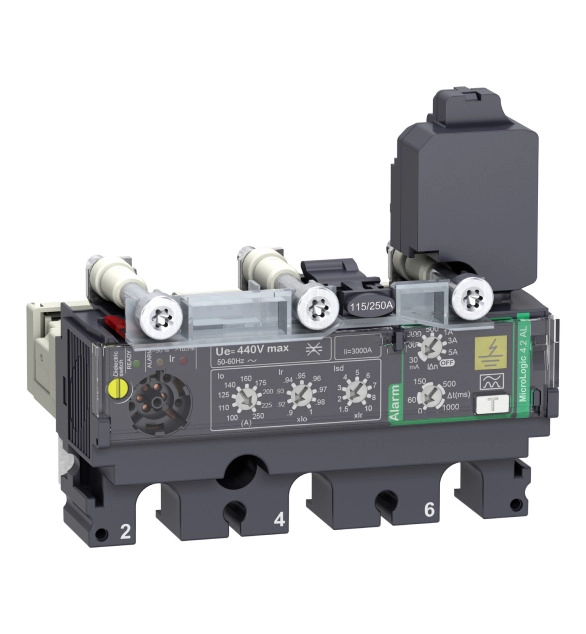

This MicroLogic 4.2 AL is a 3 poles 3d electronic trip unit used on ComPacT NSX 250 circuit breakers. This 250A rating electronic trip unit is an optimum choice for all standard and specific applications. It embeds adjustable long time protection against overloads. It provides also an adjustable short-time protection and a fixed instantaneous protection against short-circuits. MicroLogic 4.2 AL provides an earth leakage alarm without trip, that is available on the terminal block. MicroLogic 4.2 AL indicates overloads with Alarm LEDs. The green Ready LED flashes if the circuit breaker is ready to trip. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.
