СКУ: EVH5A11N2C7

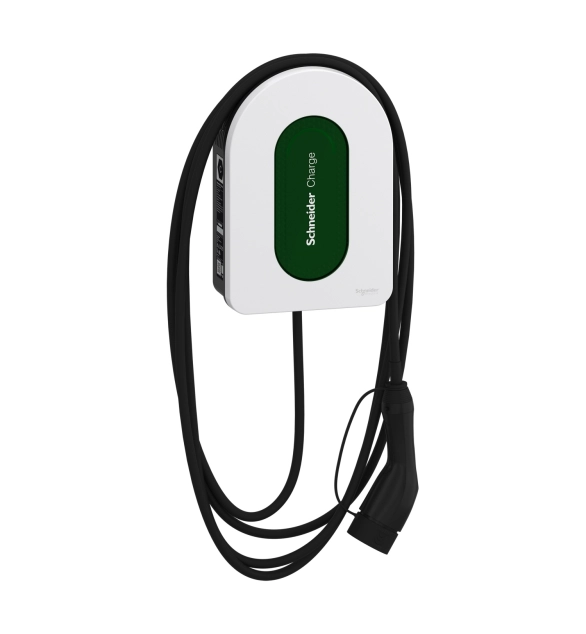

Зарядна станция, Schneider Charge, 3P+N, прикачен кабел 7m, 11kW, 16A
-
Brand
Schneider Electric
-
Material housing
EV000139
-
Degree of protection (IP)
EV006420
-
Compatible with Apple HomeKit
FALSE
-
Compatible with Google Assistant
FALSE
-
Compatible with Amazon Alexa
FALSE
-
IFTTT support available
FALSE
-
With display
FALSE
-
Mounting method
EV000868
-
Depth
107
-
Impact strength
EV008784
-
Height
342
-
Nominal connection power
11
-
With energy meter
FALSE
-
With load management
TRUE
-
With circuit breaker
FALSE
-
Number of charging units
1
-
With communication interface
TRUE
-
Number of vehicle connectors Type 2
1
-
Max. power per charging point
11
-
Installation side connection model
EV007010
-
Width
244
-
With house connection box
TRUE
-
Function access control
FALSE
-
Length of charging cable
7
-
Number of socket outlets Type 3
-
Number of CEE socket outlets
-
Number of vehicle connectors GB AC
-
Number of socket outlets GB
-
Number of vehicle connectors GB DC
-
Number of household socket outlets
-
Number of vehicle connectors CHAdeMO
-
Number of earth leakage circuit breakers type A
-
Number of earth leakage circuit breakers type B
-
Number of vehicle connectors Type 1 CCS
-
Number of vehicle connectors Type 1
-
Number of vehicle connectors Type 2 CCS
-
Number of socket outlets Type 2
This Schneider Charge product is a wall-mounted charging station for all electrical vehicles compliant with IEC61851-1 standard. The IP degree of protection is IP55. The IK degree of protection is IK10. The operating temperature is between -35°C and 55°C. The output type is a 7m attached cable with a T2 socket-outlet at the end, installed at the bottom and top centre of the station. The nominal output power is 11kW. It is supplied in three-phase (3P+N). The rated charging current is 16A under 400VAC at 50Hz/60Hz frequency. It can be used with a TN-S, TT or IT earthing system. The charging station is easy to install (no special tools required). It is recommended for private use at home, installed in the garage or on a wall externally. The dimensions are (W) 244mm x (H) 352mm x (D) 107mm. Its product weight is 5.1kg (without cable). Its color is white (RAL 9003) and green. It is fitted with a built-in protection against residual direct current (RDC-DD as Residual Direct Current Detecting Device). There is no access control to use the charging station for loading an electrical vehicle. One LED is changing color between red, green and blue in order to indicate the loading status directly on the charging station. This one allows to adjust in real time the maximum power allocated to the charging electric vehicle, according to the consumption of the rest of loads in the house and adapt the load according to Off Peak/Peak hours sent by TIC. The charging station is connected with Wiser by the Schneider ElectricTM mobile application for residential energy management. It easily starts, monitors, and controls the charging experience remotely. The OCPP 1.6 communication protocol can be used to connect to the supervision device/third party cloud. It can also be connected to Internet home router, either through Wi-Fi or RJ45 Ethernet cable.
