СКУ: 82301
Индустриален присъединител - 16 A - 2P - 20...25 V AC - IP44
-
Brand
Schneider Electric
-
Number of poles
3
-
Material
EV000139
-
Connection system
EV001008
-
Military model
FALSE
-
Angle of plug
EV000164
-
Phase inverter
FALSE
-
Surface treatment contacts
EV000191
-
Contact material
EV006576
-
Degree of protection (IP)
EV006418
-
IEC-amperage
32
-
Clock hour position
4
-
Cable entry
EV000154
-
Identification colour
EV000235
-
RAL-number

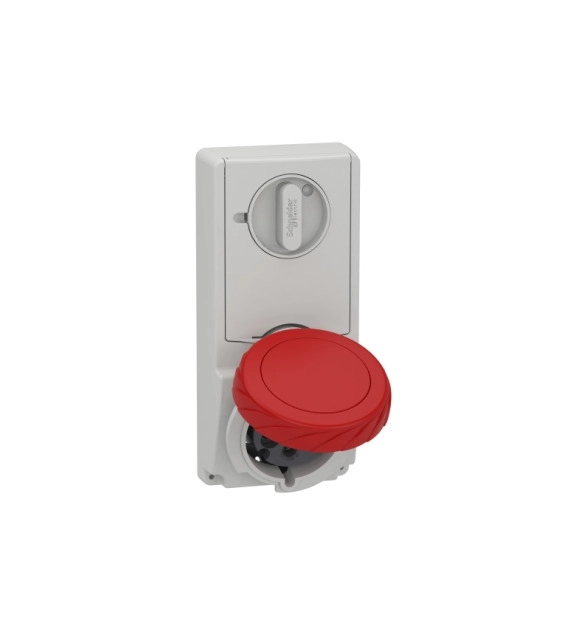

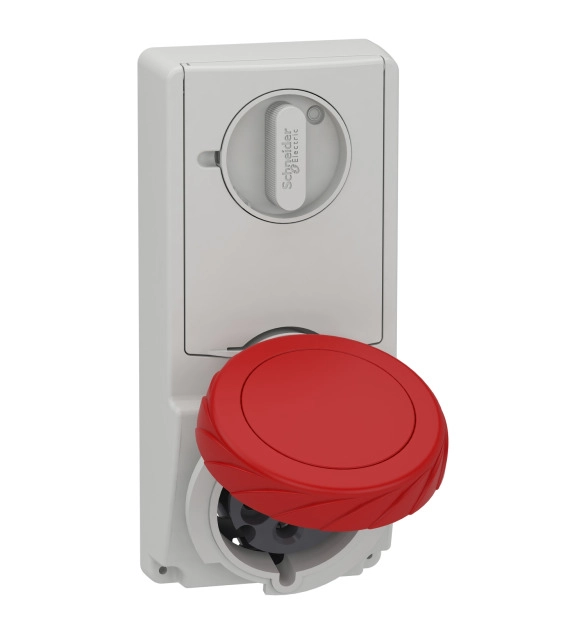

Mureva PK interlocked socket designed for industrial environments, including outdoor-harsh conditions, making it suitable for containerized setups. The Interlocked design prevents accidental disconnection under load and has a 3P+E outlet pole configuration. The cable entries are suitable for both flexible and rigid cables. The size of the cable entry in 16A is 25mm for 10mm² cable cross-section. The clock position of contact is 6h. Its Ue rated operational voltage is 200-250VAC at 50/60Hz and its Ie rated operational current is 16A. This interlocked socket with captive screw connection is panel-mounted. The dimensions of the base plate are (W) 103mm x (H) 225mm. Operation temperature is from -25°C up to 40°C, and it reaches IP65 degree of protection. It is made up of self-extinguishing engineering polymer. The color of the product is grey (RAL 7035). Mureva PK industrial plugs and sockets expertly combine high performance with ease of installation and practicality. It is designed with providing exceptional levels of protection and ergonomics in mind. The product complies with the EN 60309-1, EN 60309-2 standards.
