СКУ: RE17RAMU
Таймер FUNC A At 1C/O - 24VDC & 24..240VAC RE8TA11BU=RE17RAMU
-
Brand
Schneider Electric
-
Type of electric connection
EV000415
-
Depth
72
-
Rated control supply voltage Us at AC 50HZ
24
-
Rated control supply voltage Us at AC 60HZ
24
-
Voltage type for actuating
EV000509
-
Rated control supply voltage Us at DC
24
-
Height
90
-
Suitable for front mounting
TRUE
-
Width
17.5
-
With semiconductor output
FALSE
-
Function delay on de-energization
FALSE
-
Pluggable on auxiliary contact block
FALSE
-
Clock function, starting with pause, variable
FALSE
-
Clock function, starting with pulse, variable
FALSE
-
Number of outputs, undelayed, change-over contact
1
-
Function floating contact on de-energization
FALSE
-
Suitable for DIN rail (top hat rail) mounting
TRUE
-
Function floating contact on energization
FALSE
-
Outputs, reversible delayed/undelayed
FALSE
-
With plug-in socket
FALSE
-
Function star-delta
FALSE
-
Function flashing, starting with pause, fixed time
FALSE
-
Function flashing, starting with pulse, fixed time
FALSE
-
Remote operation possible
FALSE
-
Suitable as remote control
FALSE
-
Time range
0.1
-
Function pulse shaping
FALSE
-
Function delay-on energization
TRUE
-
Number of outputs, delayed, change-over contact
1
-
Nominal current
8
-
Number of outputs, delayed, normally open contact
-
Number of outputs, delayed, normally closed contact
-
Number of outputs, undelayed, normally open contact
-
Number of outputs, undelayed, normally closed contact

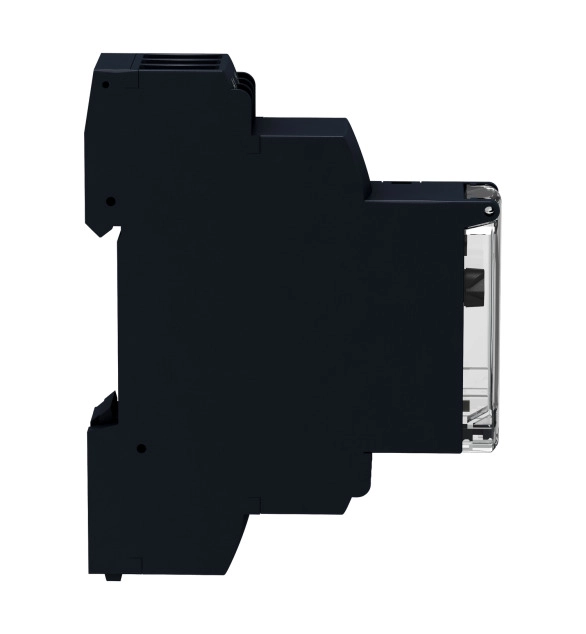

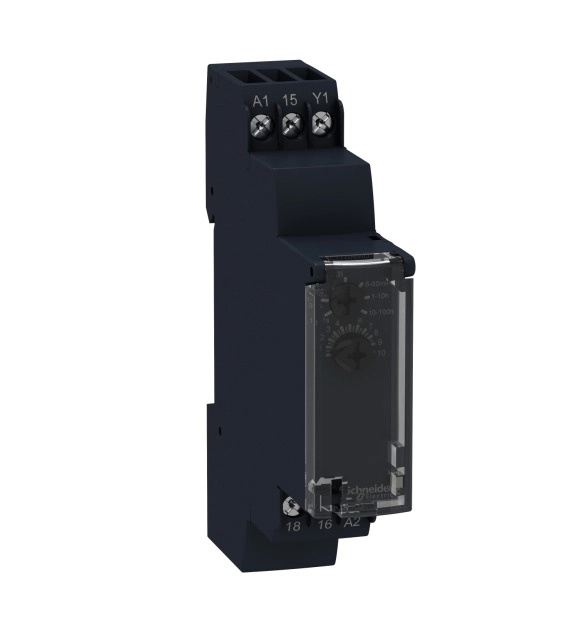

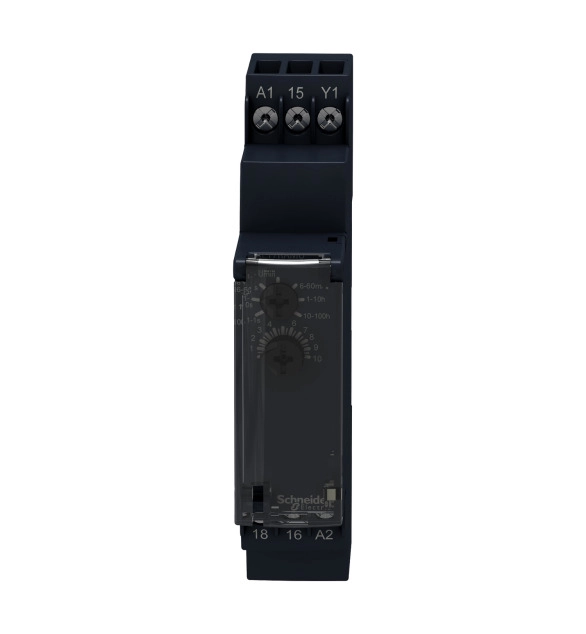

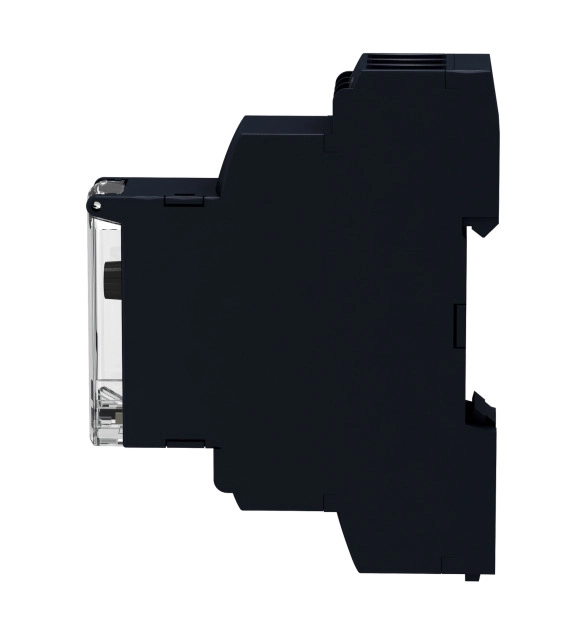

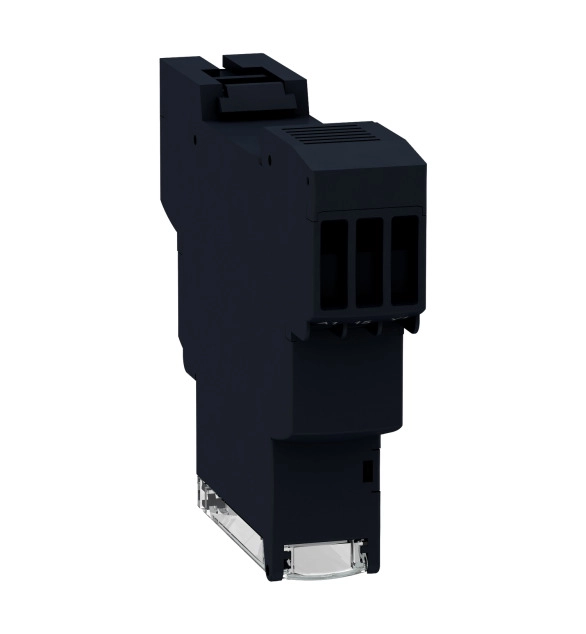

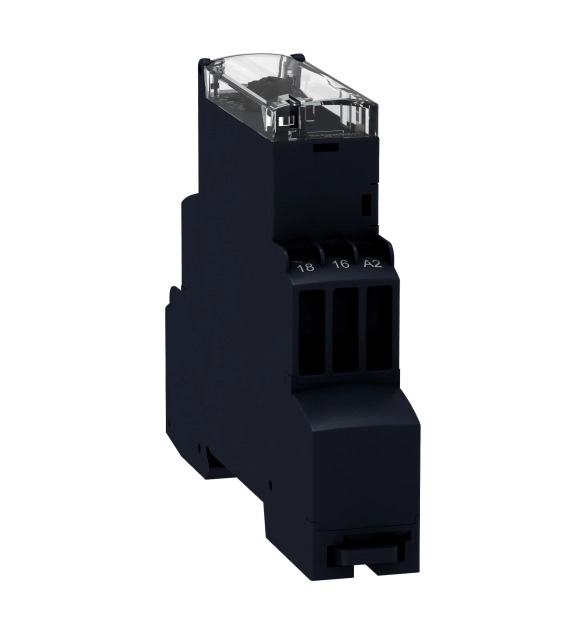

This Harmony RE17R timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 8A, is 17.5mm wide and can be supplied with 24 V DC, 24 to 240 V AC. It also has 1 changeover contact SPDT (single pole double throw). It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. This timer offers pause and summation control signals. Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC.
