СКУ: 83092
Индустриален контакт с блокировка, Mureva PK, стенен монтаж, 32A, 2P+E, 220V, IP65
-
Brand
Schneider Electric
-
Number of poles
3
-
Material
EV000139
-
Cable entry
EV004016
-
Connection system
EV001008
-
Type of fastening
EV009034
-
Insulated mounting
FALSE
-
Clock hour position
6
-
Military model
FALSE
-
Identification colour
EV000080
-
Degree of protection (IP)
EV006418
-
IEC-amperage
32

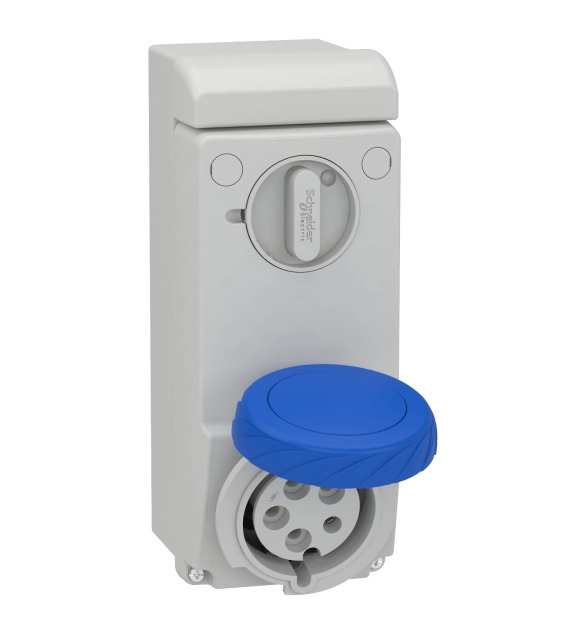

The Mureva PK mounting box is designed for robust and safe electrical connections. The Ie rated operational current of the power socket-outlet is 16-32A. It is designed to be surface mounted on the walls with knock-outs. It is made up of self-extinguishing engineering polymer. The color of the product is light grey (RAL 7035). The dimension of the box is (W) 103mm x (H) 250mm x (D) 70mm and the base plate is (W) 103mm x (H) 225mm. Operation temperature is from -25°C up to 40°C, and it reaches IP65 degree of protection. The fire resistance is 750°C. Mureva PK industrial plugs and sockets expertly combine high performance with ease of installation and practicality. It is designed with providing exceptional levels of protection and ergonomics in mind. The product complies with the EN 60309-1, EN 60309-2 standards.
