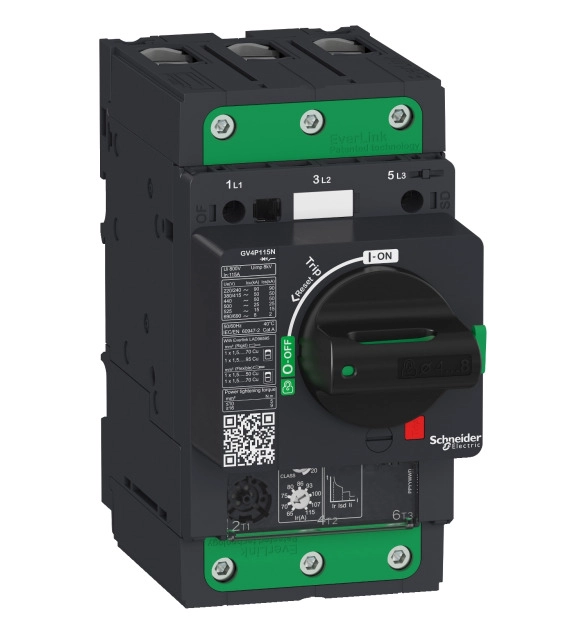

SCHNEIDER ELECTRIC Motor circuit breaker, TeSys GV4, 3P, 80A, Icu 25kA, thermal magnetic, Everlink terminals

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Number of poles
    3
  • Rated operating voltage
    690
  • Rated permanent current Iu
    80
  • Rated operation power at AC-3, 400 V
    37
  • Type of control element
    EV000092
  • Degree of protection (IP)
    EV006415
  • With integrated under voltage release
    FALSE
  • With integrated auxiliary switch
    FALSE
  • Phase failure sensitive
    TRUE
  • Device construction
    EV009311
  • With thermal protection
    TRUE
  • Rated operation power at AC-3, 230 V
    22
  • Width
    81
  • Depth
    165
  • Height
    155
  • Switch off technique
    EV000101
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    25
  • Overload release current setting
    40
  • Adjustment range undelayed short-circuit release
    1360

TeSys GV motor circuit breaker, 3 poles (3P), 80A/690V, for protection of 3-phase motors 22-37kW at 400V. It provides thermal magnetic protection and additional motor protection functions, breaking capacity Icu 25kA at 400V, start-stop control by rotary handle, connection by Everlink BTR screw terminals. Thermal protection adjustable by dials with a setting current Ir in range 40-80A and a selectable tripping class 10 or 20, magnetic protection at 17 In. Additional protections have fixed pick-up and include short time delay protection Isd at 13 Ir, phase unbalance and loss protection, ground fault protection. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).
