СКУ: LV480808

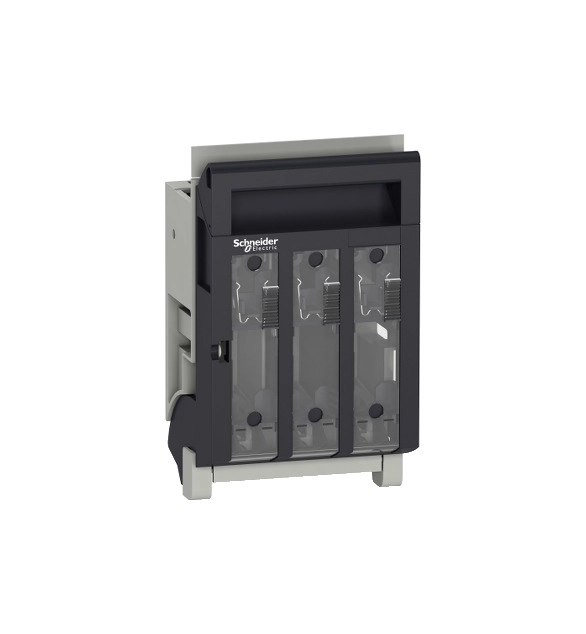

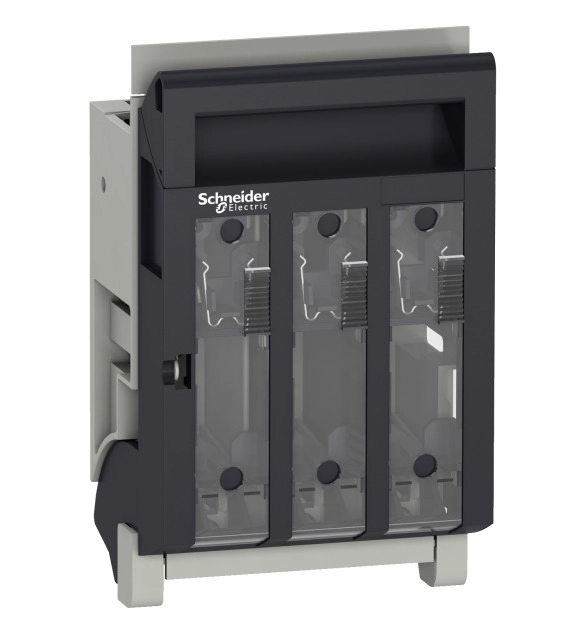

fuse Товаров разединител, Fupact ISFT630, 630 A, DIN NH03, 3 полюса, backplate mounting

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Version as emergency stop installation
    FALSE
  • Max. rated operation voltage Ue AC
    690
  • Number of poles
    3
  • Version as safety switch
    FALSE
  • Motor drive integrated
    FALSE
  • Suitable for floor mounting
    FALSE
  • Motor drive optional
    FALSE
  • Version as main switch
    TRUE
  • Rated permanent current Iu
    630
  • Cable entry
    EV000154
  • Suitable for fuses
    EV004005
  • Type of control element
    EV000154
  • Suitable for busbar mounting
    FALSE
  • Position control element
    EV007926
  • Suitable for front mounting
    TRUE
  • Degree of protection (IP), front side
    EV006414
  • Conditioned rated short-circuit current Iq
    80
  • Equipped with connectors
    TRUE
  • With error protection
    TRUE
  • Rated short-time withstand current lcw
    20.4

EasyPact CVS100BS is a 3 poles 3d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 25kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. EasyPact CVS100BS current-limiting technology greatly reduces damage to installation caused by short-circuit current. This product embeds a 50A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 3 poles version (75mm x 130mm x 60mm) comes with a variety of optional functions and accessories. EasyPact CVS100BS is compliant with international standards (IEC 60947, CCC, EAC).
