СКУ: 8800450000

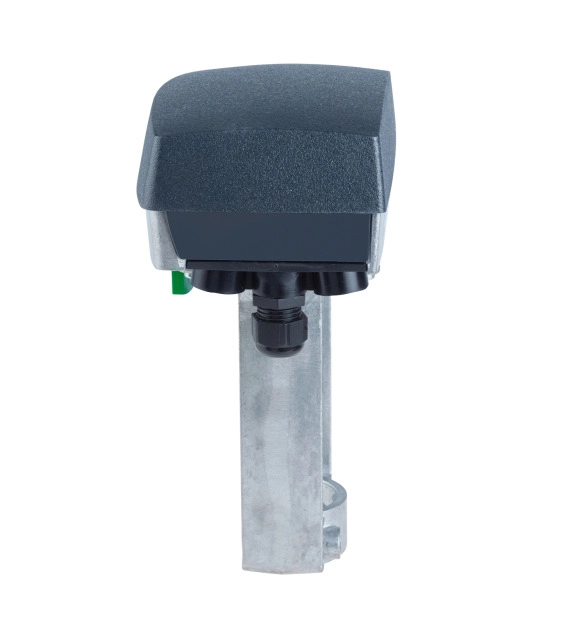

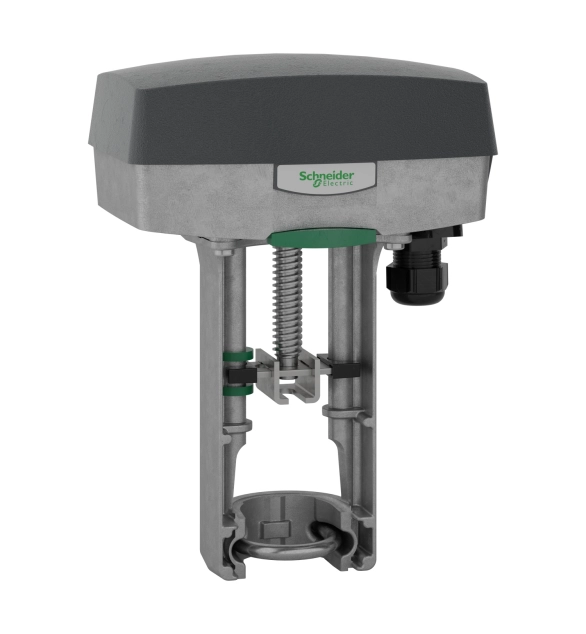

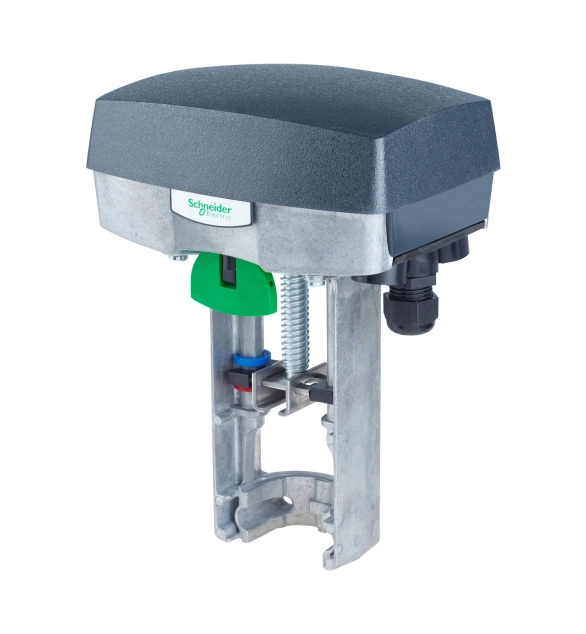

Forta за електромеханично зад.устройство M1500 за кръгъл клапан

  • Brand
    Schneider Electric
  • Type of electric connection
    EV000415
  • Type of control element
    EV004095
  • With light source
    FALSE
  • Spring-return
    FALSE
  • Colour front ring
    EV000291
  • Switching function latching
    TRUE
  • With front ring
    TRUE
  • Suitable for illumination
    FALSE
  • Number of contacts as normally closed contact
  • Number of contacts as normally open contact
  • Number of contacts as change-over contact
  • Degree of protection (IP)
    EV006422
  • Number of switch positions
    2
  • Material front ring
    EV000914
  • Colour button
    EV000206
  • Degree of protection (NEMA)
    EV022254
  • Hole diameter
    31

The SpaceLogic M700 is a spring return electromechanical actuator for the control of two-way and three-way globe valves in. The electronic circuitry of the actuator ensures that the running time is the same, regardless of the stroke of the valve in question. The actuators is easy to mount and connect. Modulating control signal or increase/decrease signal, Stem Down spring action (the stem is pulled up when power off) and end point switches. Supply voltage: 24 Vac +25%/-35%. Analog Control Input selectable Voltages: 0…10 V, 2…10 V, 0…5 V, 5…10 V, 2…6 V, 6…10 V. Force: 700 N, IP 54 Protection class. Stroke: 9-52 mm. EMC 2014/30/EU, LVD 2014/35/EU. When an end position adjustment is made, The actuator closes the valve and then opens it fully before responding to the control signal.
