СКУ: GS2DB4

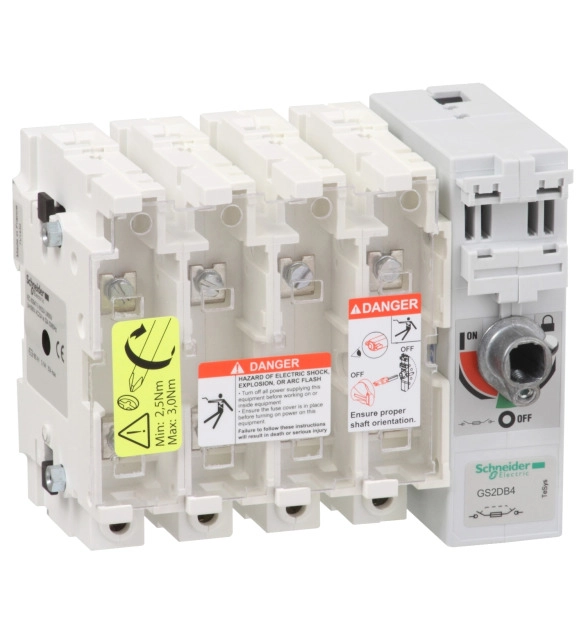

TeSys GS - switch-disconnector-fuse - 4 P - 32A - BS A1
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Version as emergency stop installation
FALSE
-
Version as safety switch
FALSE
-
Degree of protection (IP), front side
EV006405
-
Rated operation power at AC-23, 400 V
15
-
Motor drive integrated
FALSE
-
Suitable for floor mounting
FALSE
-
Motor drive optional
FALSE
-
Rated permanent current Iu
32
-
Version as main switch
TRUE
-
Number of poles
4
-
Suitable for front mounting
FALSE
-
Cable entry
EV000154
-
Type of control element
EV005987
-
Suitable for busbar mounting
TRUE
-
Conditioned rated short-circuit current Iq
100
-
Max. rated operation voltage Ue AC
750
-
Equipped with connectors
FALSE
-
With error protection
FALSE
-
Position control element
EV000154
-
Rated short-time withstand current lcw
100
-
Suitable for fuses
EV000154
TeSys GS fuse switch-disconnector, 4 poles (4P), 32A/800V, to be used with type BS fuse links size A1 up to 32A, for motor applications up to 15kW@400V AC-23. To be equipped with an external front side or right-hand side mounting operating handle GS2AH (several models available). It provides screw terminals with 4P terminal shrouds, high short circuit current rating 80kA@400V. Add-on auxiliary contact modules front mounting GS1AM (early-break and position signaling) can complete the assembly (to be ordered separately). Multi standards certified (IEC, Marine).
