СКУ: GS2S3

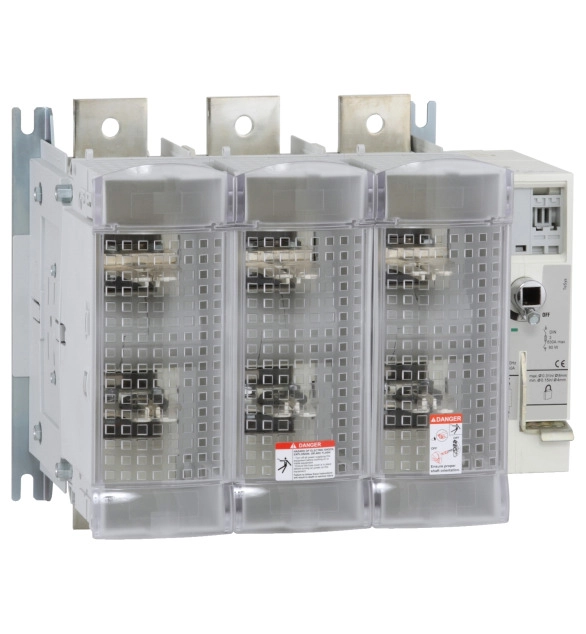

TeSys GS - мощн. разединител - 3 P - 630A - DIN 3
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Version as emergency stop installation
FALSE
-
Number of poles
3
-
Version as safety switch
FALSE
-
Degree of protection (IP), front side
EV006405
-
Motor drive integrated
FALSE
-
Suitable for floor mounting
FALSE
-
Motor drive optional
FALSE
-
Version as main switch
TRUE
-
Suitable for front mounting
FALSE
-
Rated permanent current Iu
630
-
Cable entry
EV000154
-
Type of control element
EV005987
-
Suitable for busbar mounting
TRUE
-
Conditioned rated short-circuit current Iq
100
-
Equipped with connectors
FALSE
-
With error protection
FALSE
-
Position control element
EV000154
-
Rated short-time withstand current lcw
100
-
Max. rated operation voltage Ue AC
1000
-
Suitable for fuses
EV004005
-
Rated operation power at AC-23, 400 V
355
TeSys GS fuse switch-disconnector, 3 poles (3P), 630A/1000V, to be used with DIN blade fuse links size 3 up to 630A, for motor applications up to 355kW@400V AC-23. To be equipped with a direct operating handle GS1AH104 (to be ordered separately), or with an external operating handle GS2AH that can be front side, left-hand side, or right-hand side mounting (several models available). When the Product Is Used outside a control panel or for Voltage >=500Vac, screw terminals with 3P terminal shrouds, high short circuit current rating 100kA@400V. Add-on auxiliary contact modules GS1AM (front mounting), GS1AN (side mounting), GS1AF (top mounting for blown signaling with stricker fuses) can complete the assembly (to be ordered separately). Type aM and gG size 3 blade fuse links without strickers DF2KA, DF2KN and with strickers DF4KA, DF4KN are available (to be ordered separately). Multi standards certified (IEC, Marine).
