СКУ: LR97D38B

Електронно реле 20 A 38A 24V AC DC

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Rated control supply voltage Us at AC 50HZ
    24
  • Rated control supply voltage Us at AC 60HZ
    24
  • Voltage type for actuating
    EV000509
  • Rated control supply voltage Us at DC
    24
  • Mounting method
    EV003970
  • Reset function automatic
    TRUE
  • Reset function push-button
    TRUE
  • Release class
    EV009222
  • Reset function input
    TRUE
  • Number of auxiliary contacts as change-over contact
    1
  • Adjustable current range
    20
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as normally open contact

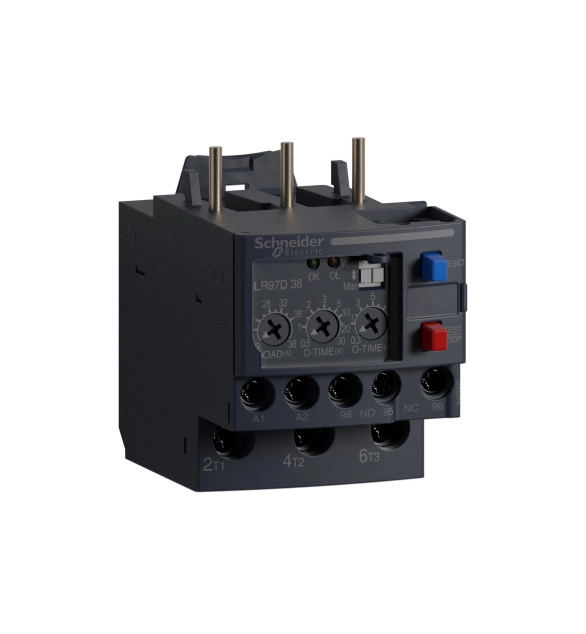

TeSys LR97D electronic overcurrent relay, 38A/690V, to be supplied with 24V AC/DC, for protection of motors with a rated current 20-34A. It provides 3 dials to adjust the protection, LOAD (20-38A) (5-25A) for the overcurrent level, O-TIME (0.3-10sec) for the acceptable duration of the overcurrent, D-TIME (0.5-30sec) for the starting duration. In addition, the device trips when the current is higher than 3 x LOAD during more than 0.5sec in steady state and if there is a missing phase during more than 3sec. The settings include selectors for 1-phase/3-phase motors and manual/automatic reset, and the device has a reset button, a test/stop button, 2 LED indicators (Run/Trip), 2 auxiliary contacts 1NO/NC for fault signalling. Settings can be locked by sealing the transparent cover. For direct attachement to the bottom terminals of a 3-pole contactor LC1D25-D38, with screw clamp terminals on bottom, the separate mounting from the contactor is possible using the terminal block LAD7B106 (to be ordered separately). Multi-standards certified (IEC, UL, CSA, CCC, EAC), compliant RoHs/Reach.
