СКУ: LR9G500

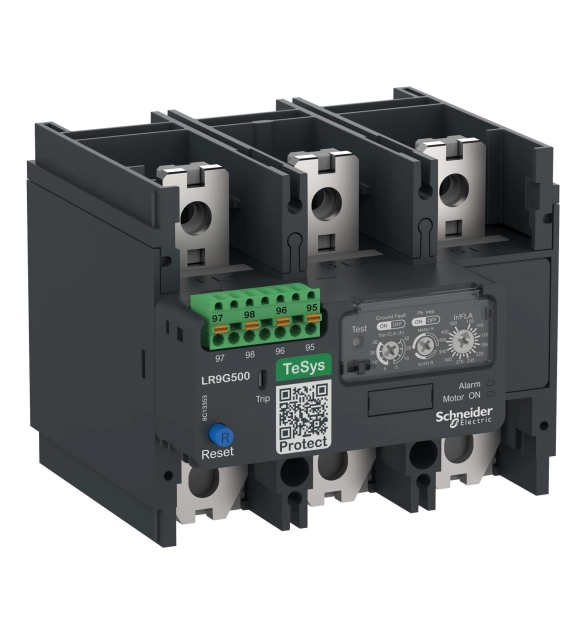

Електронно термично реле за претоварване, TeSys Giga, 125-500 A, class 5E-30E, Push-in контролна връзка
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Reset function automatic
TRUE
-
Number of auxiliary contacts as normally closed contact
1
-
Number of auxiliary contacts as normally open contact
1
-
Mounting method
EV008930
-
Reset function push-button
TRUE
-
Reset function input
TRUE
-
Max. rated operation voltage Ue
1000
-
Release class
EV008931
-
Adjustable current range
125
-
Number of auxiliary contacts as change-over contact
TeSys LR9G 500A thermal overload relay is compatible with TeSys Giga high power contactor, push-in control connection. It provides phase imbalance, phase failure, in-built ground-fault and single-phase loads protections. It is available for manual and auto reset options and LED indicator for Motor ON and pre-trip alarm. Tripping classes is selectable from class 5E to class 30E to suit different application needs from fast tripping, general purpose and high inertia loads. It is suitable for independent mounting or direct mounting with LC1G contactors. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It can cover -25°C to 60°C operation ambient air temperature without derating up to 3000m altitude. Multi standards certified (CE,CB,CCC,cULus,EAC,KC,RCM,Marine). Unique QR code provides quick access to complete product data.
