СКУ: LR9D02

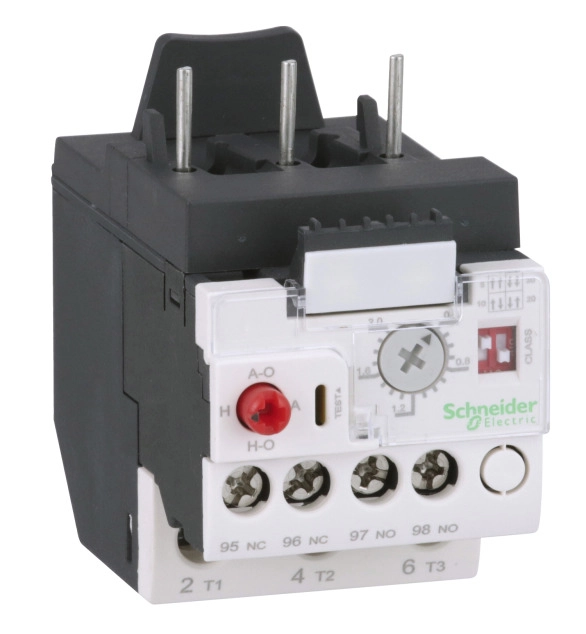

Реле за претоварване, електронно, термично, TeSys LRD, защита на двигателя, издържа на 6kV импулс и 2kV пренапрежение, 0,4A до 2A
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Voltage type for actuating
EV000460
-
Reset function automatic
TRUE
-
Reset function input
FALSE
-
Mounting method
EV008930
-
Reset function push-button
TRUE
-
Adjustable current range
0.4
-
Rated control supply voltage Us at AC 50HZ
690
-
Rated control supply voltage Us at AC 60HZ
690
-
Release class
EV009222
-
Number of auxiliary contacts as normally closed contact
-
Number of auxiliary contacts as change-over contact
-
Number of auxiliary contacts as normally open contact
TeSys LR9D electronic overload relay, 2A/690V, thermal setting range 0.4-2A, selectable tripping class 5-10-20-30, for protection of 3-phase motors 0.12-0.75kW at 400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, buttons for test, stop and reset as well as manual-automatic reset selector, dipswitches for tripping class selection, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from contactor, with use of the terminal block LAD7B205 (to be ordered separately). Multi-standards certified (IEC, UL, CSA, CCC), RoHs/Reach.
