MD5B Damper Actuator, 2-Position, Non-Spring Return, 24 Vac/dc, 1 m Cable, 5 Nm, S2 Switch, IP54 | Spark & Co
  • 3D
|

СКУ: 8751007000

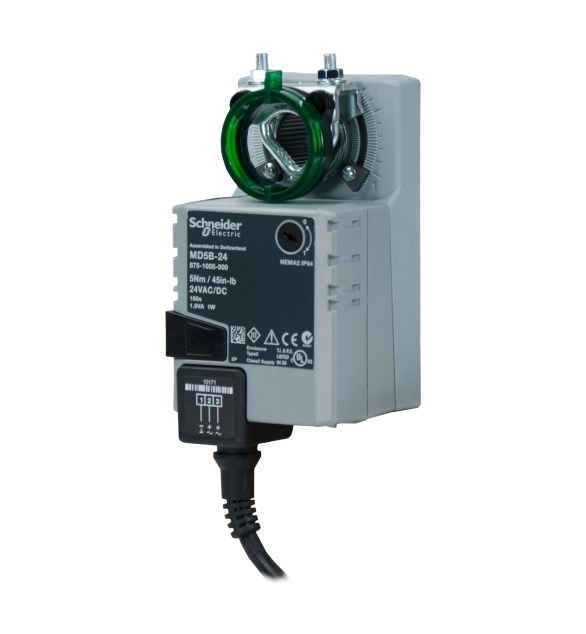

MD5B Damper Actuator, 2-Position, Non-Spring Return, 24 Vac/dc, 1 m Cable, 5 Nm, S2 Switch, IP54

  • Brand
    Schneider Electric
  • Material housing
    EV000154
  • Degree of protection (IP)
    EV006419
  • Suitable for manual operation
    TRUE
  • Potential free switch contact
    TRUE
  • Adjustable position feedback signal
    TRUE
  • Regulation type splitrange
    FALSE
  • Return at zero supply voltage
    FALSE
  • Position reporting system
    EV000494
  • Auxiliary contacts optional
    FALSE
  • With safety function
    TRUE
  • Adjustable operating range
    TRUE
  • Allowable relative humidity
  • Type of safety function
    EV000154
  • Deactivated when closed
    FALSE
  • End contacts
    EV000494
  • With top flange direct mount according to ISO 5211
    FALSE
  • Self-adjusting travel length
    TRUE
  • Automatic travel recognition
    TRUE
  • With mechanical setting indicator
    TRUE
  • Auxiliary contacts
    TRUE
  • Height
    68
  • Degree of protection (NEMA)
    EV000600
  • Connection to stop valve
    EV000494
  • Model
    EV010029
  • Length of connection cable
    1
  • Regulation type on/off
    TRUE
  • Suitable for air accessory
    TRUE
  • Max. angle of rotation
    95
  • Suitable for valve
    FALSE
  • Ambient temperature
    -30
  • Operating time
    150
  • Control signal
    EV020581
  • Regulation type modulating
    FALSE
  • Supply voltage
    EV021412
  • Width
    114
  • Depth
    47
  • Principle of operation safety function
    EV015557
  • Torque
    5
  • Explosion-proof
    TRUE
  • Max. electric power input
    3.5
  • Energy consumption in operation
    1.5

The V311T is an internally threaded 3-way globe valve designed for a wide range of heating and cooling applications. The valve uses a crown plug for precise fluid control. Nodular iron construction provides a long life and high corrosion resistance. The crown plug provides precise fluid control with a rangeability of 50:1 and is of a self cleaning design for reliable operation. Valve size: DN50, G External, Flow capacity, Kvs: 38 m³/h. Constructed and flanged to a PN16 pressure class. ΔPm of maximum 400 Kpa. EPDM seals provide a working temperature range of -20 °C to + 120 °C, the soft seat seal ensures a tight close off with no leakage. 20 mm stroke ensures high controllability, Equal percentage flow characteristic ensures high controllability at low opening degrees. Meets the 214/68/EE, article 4.3 of the PED (Pressure Equipment Directive).
