СКУ: LT4706M7A

Електронно реле 0,5 A 6A 220V AC AUTO

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Voltage type for actuating
    EV000460
  • Rated control supply voltage Us at AC 50HZ
    200
  • Rated control supply voltage Us at AC 60HZ
    200
  • Reset function automatic
    TRUE
  • Reset function input
    FALSE
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as normally open contact
    1
  • Mounting method
    EV003969
  • Release class
    EV009222
  • Adjustable current range
    0.5
  • Number of auxiliary contacts as change-over contact
  • Reset function push-button
    FALSE

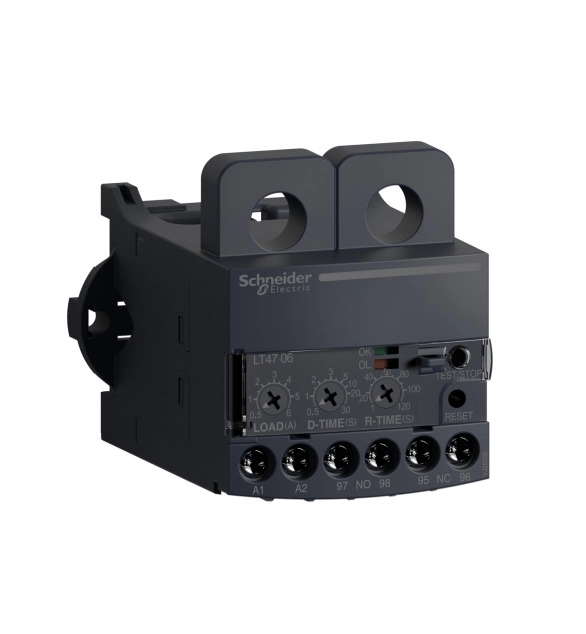

TeSys LR47 electronic overcurrent relay, 6A/690V, with automatic reset, to be supplied with 200-240V AC, for protection of motors with a rated current 0.5-5A. It provides 3 dials to adjust the protection, LOAD (0.5-6A) for the overcurrent level, O-TIME (0.3-10sec) for the acceptable duration of the overcurrent, R-TIME (1-120sec) for the automatic reset delay. In addition, the device trips when there is a missing phase during more than O-TIME. The device has a reset button, a test/stop button, 2 LED indicators (Run/Trip), 2 auxiliary contacts 1NO+1NC for fault signaling. Settings can be locked by sealing the transparent cover. DIN rail mounting, without power terminals (currents monitored by 2 current transformers crossed by the motor cables). Multi standards certified (IEC, UL, CSA, CCC, EAC), it conforms to RoHS/REACh regulation.
