СКУ: A9C22011

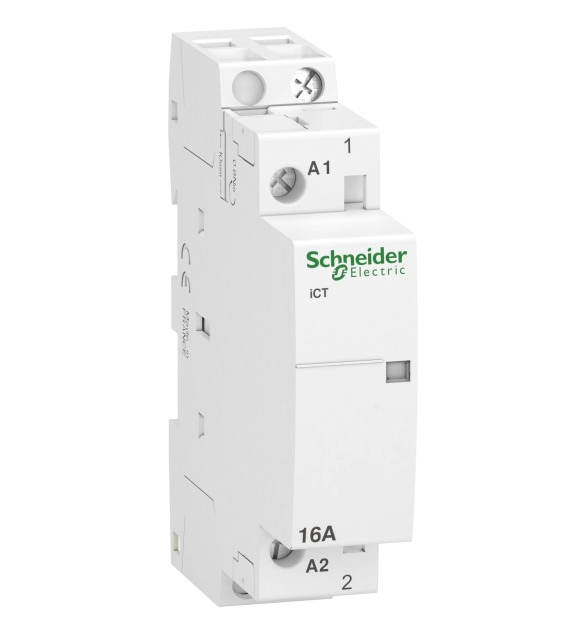

Контактор iCT16A 1NO 12/Vac 50Hz contactor
-
Brand
Schneider Electric
-
Number of contacts as normally open contact
1
-
Degree of protection (IP)
EV006405
-
Width in number of modular spacings
1
-
Additional equipment possible
TRUE
-
With day/night function
FALSE
-
Built-in depth
43.5
-
Rated operating voltage
250
-
Utility category
7
-
Slider for hand switch
FALSE
-
Voltage type (operating voltage)
EV000460
-
Voltage type (excitation voltage)
EV000460
-
Hum-free
FALSE
-
Rated operation current
16
-
Max. load fluorescent lamp (parallel compensated)
800
-
Max. incandescent lamp load
2000
-
Max. load fluorescent lamp
850
-
Max. load fluorescent lamp (Duo circuit)
1500
-
Number of contacts as normally closed contact
-
Rated excitation voltage
12
This Acti9 iCT is a modular contactor. It is a 1P remote control device with 1 normally open contact. The In rated current is 16A for AC-7a and 6A for AC-7b. The Ue rated operational voltage is 250VAC. The Uc control voltage is 12VAC. This device could be used for control circuits. This device could be used for remote switching lighting loads, small motors (fans, mixers) or HVAC system applications. It is compatible with all the Acti9 control auxiliaries, for lighting, heating & ventilation control applications. This product is compliant with IEC/EN 61095. Electrical endurance goes up to 100000 cycles for AC-7A or AC-1, 30000 cycles for AC-7C, AC-7B, AC-3, AC-5A or AC-5B The maximum switching operations is 100 per day. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. Pollution degree is 2. It is DIN rail mountable. Its width is 2 pitches of 9mm. The product color is white (RAL9003). The dimensions are (W) 81mm x (H) 18mm x (D) 68.5mm. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5°C to 60 °C. The storage temperature is from -40°C to 70°C.
