СКУ: RE22R1DMR
Dual relay 8A 1CO 0.05 300h flash 24V
-
Brand
Schneider Electric
-
Type of electric connection
EV000415
-
Suitable for front mounting
FALSE
-
Voltage type for actuating
EV000509
-
Rated control supply voltage Us at AC 50HZ
230
-
Rated control supply voltage Us at AC 60HZ
230
-
Height
-
Depth
-
With semiconductor output
FALSE
-
Number of outputs, delayed, normally open contact
-
Number of outputs, delayed, normally closed contact
-
Pluggable on auxiliary contact block
FALSE
-
Clock function, starting with pause, variable
FALSE
-
Clock function, starting with pulse, variable
FALSE
-
Number of outputs, undelayed, normally open contact
-
Number of outputs, undelayed, normally closed contact
-
Function floating contact on de-energization
FALSE
-
Function delay-on energization
FALSE
-
Suitable for DIN rail (top hat rail) mounting
TRUE
-
Function floating contact on energization
FALSE
-
Outputs, reversible delayed/undelayed
FALSE
-
With plug-in socket
FALSE
-
Function flashing, starting with pause, fixed time
FALSE
-
Function flashing, starting with pulse, fixed time
FALSE
-
Suitable as remote control
FALSE
-
Time range
0.1
-
Number of outputs, undelayed, change-over contact
-
Function pulse shaping
FALSE
-
Width
22.5
-
Function delay on de-energization
TRUE
-
Number of outputs, delayed, change-over contact
1
-
Nominal current
8
-
Function star-delta
TRUE
-
Remote operation possible
TRUE

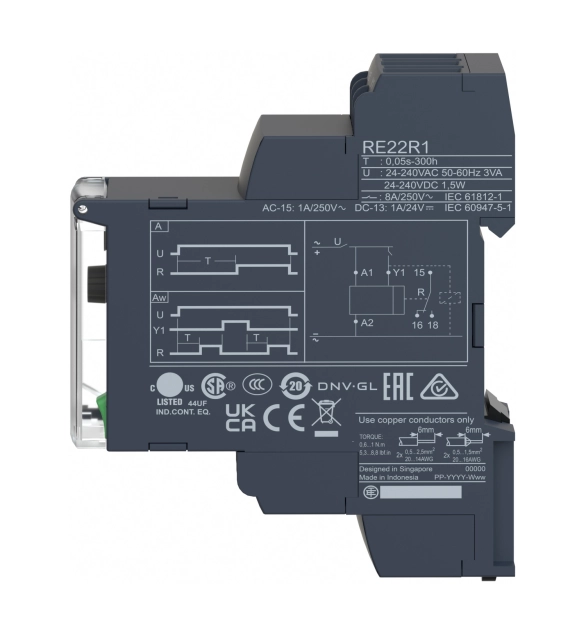

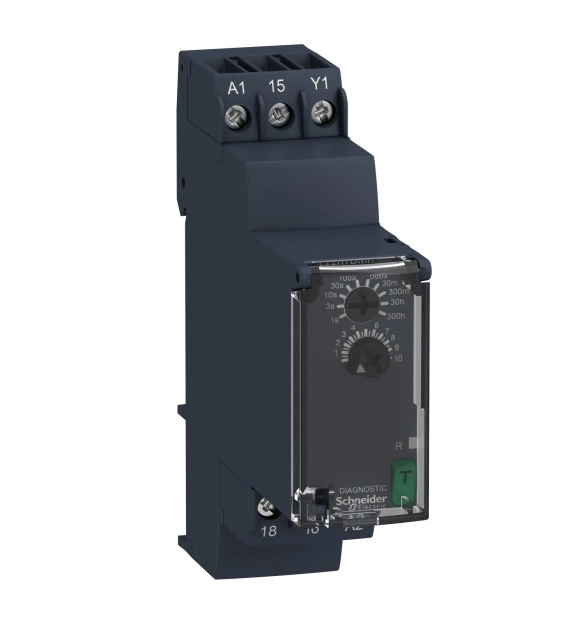

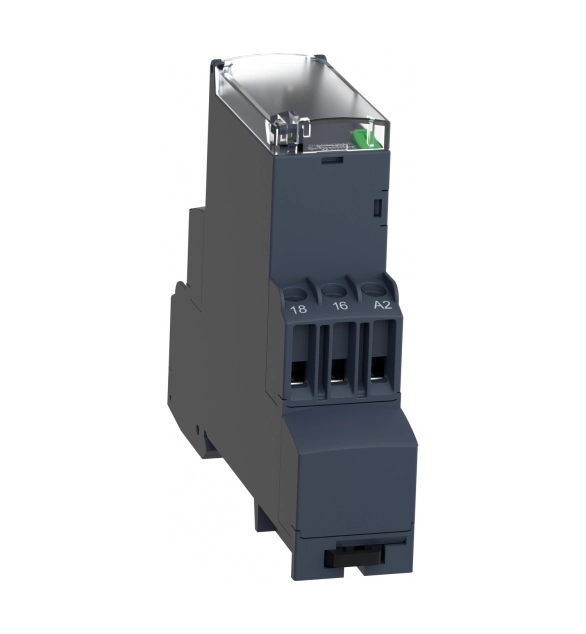

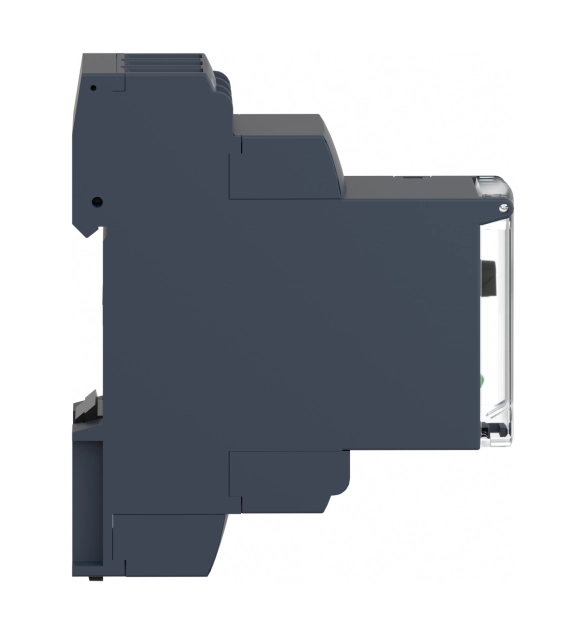

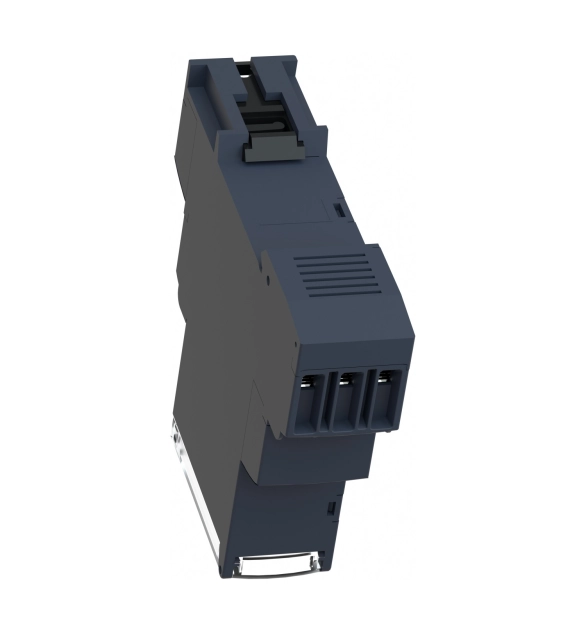

This Harmony RE22 modular dual function timer can be set between 1 seconds and 300 hours, has an output rating of 8 amperes and it is 22.5 millimeters wide. This modular dual function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device. Dual function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC.
