СКУ: MTN6705-0008S

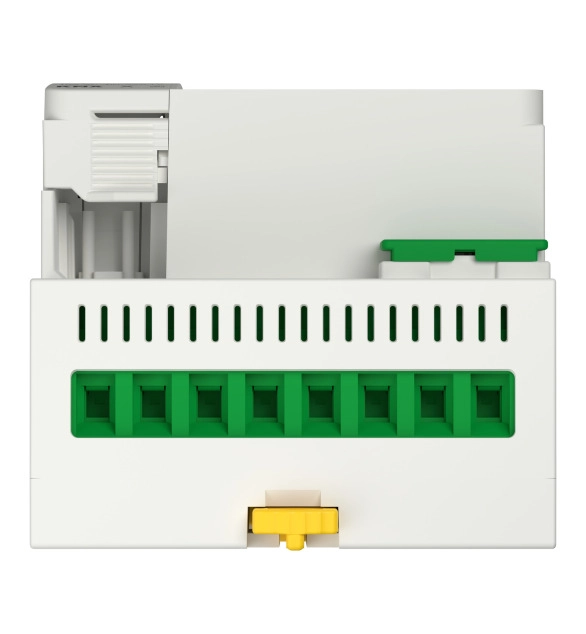

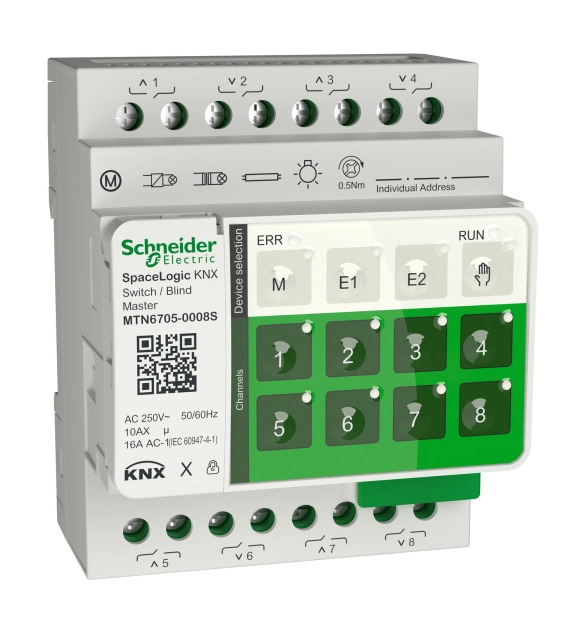

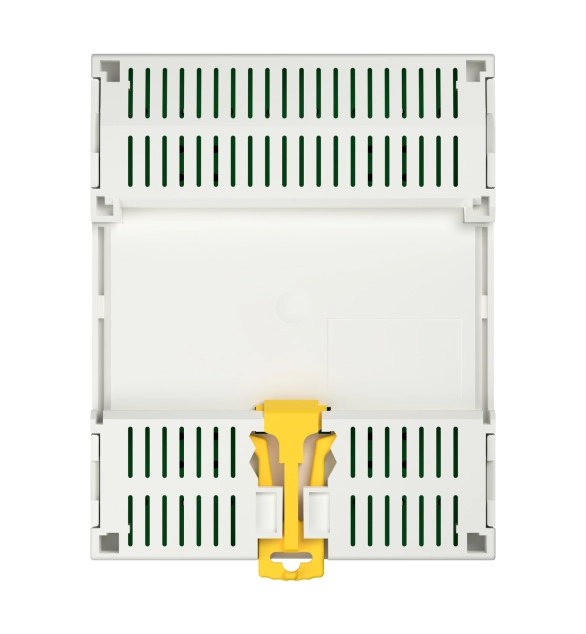

SCHNEIDER ELECTRIC SpaceLogic KNX Switch/Blind Master 8ch, 250V, 16A, white
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Width in number of modular spacings
4
-
With LED indication
TRUE
-
Bus system KNX radio
FALSE
-
Bus system Powernet
FALSE
-
Bus system LON
FALSE
-
Mounting method
EV006471
-
Bus system radio frequent
FALSE
-
Other bus systems
EV000494
-
Radio frequent bidirectional
FALSE
-
With bus connection
TRUE
-
Type of current
EV000460
-
Bus system KNX
TRUE
-
Local operation/hand operation
TRUE
-
Max. switching power
2300
-
With switch function
TRUE
-
Number of inputs
-
Switching current (resistive)
16
-
Max. number of venetian-blind outputs
4
-
Bus module detachable
TRUE
-
Min. depth of built-in installation box
66
The Schneider Electric device which is SpaceLogic KNX Switch Master, it is secure and reliable. Control your lighting, blinds, and shutters with possible advanced functionalities. Introducing the Modular Master Extension concept featuring standardized sizes and module prefab link. Achieving high component performance with KNX Secure communication. Control up to 4 blinds/roller shutters or switch 8 loads via make contacts. The function of switching channels or adjusting for those who are visually impaired can be customized to suit individual preferences. The blind/switch outputs have manual push button controls available for operation. You can choose to use KNX Data Secure communication through either ETS or eConfigure software. To increase the number of channels, simply connect SpaceLogic KNX Switch/Blind Extensions. A maximum of 2 Extensions can be connected to the Master, so up to 24 loads can be switched or 12 blind drives can be controlled. The nominal current is 16A and the nominal operational voltage is 250VAC, The frequency is 50-60Hz. The Motor load is 1000VA for each switch output. The nominal load for incandescent lamps is 2300W, for halogen lamps is 2300W, for LED is 200W, for capacitive load is 10AX with a maximum of 140µF. The relay has a maximum inrush current of 800 A/200 μs and a maximum of 165 A/20 ms for the inductive load of 10 A with a power factor of 0.6. The support is mounted using a DIN rail. The dimensions are (W) 8mm x (H) 12.4mm x (D) 15.7mm. The product is white in color. This device has an IP rating of IP20. The SpaceLogic KNX Module and Cable Link are available. Accelerate the delivery of your project by utilizing ETS Express commissioning or eConfigure software. Ensure data privacy protection with KNX Data Secure capabilities and certification.
