СКУ: RE22R1QMU

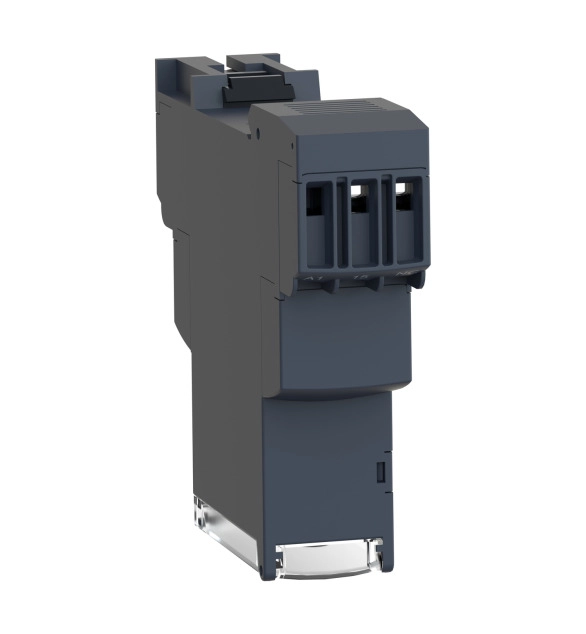

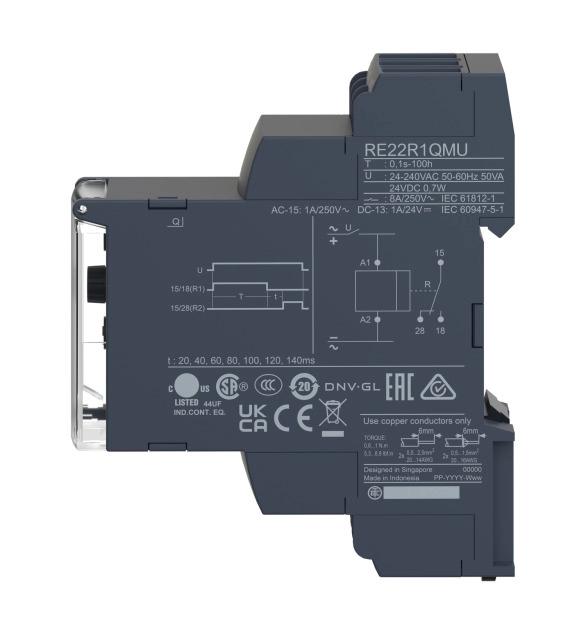

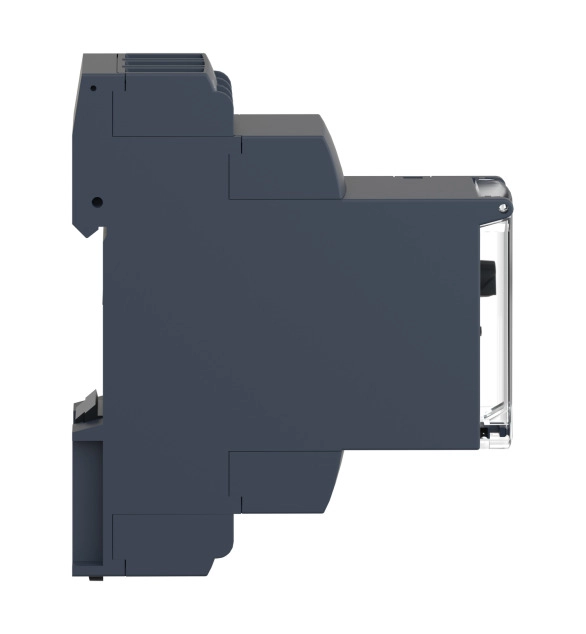

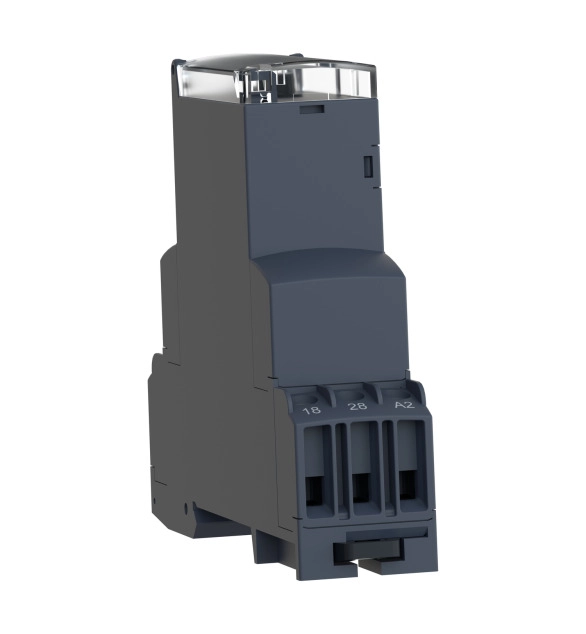

Relay 8A 1CO 0,1s 300h delta 24V

  • Brand
    Schneider Electric
  • Type of electric connection
    EV000415
  • Suitable for front mounting
    FALSE
  • Rated control supply voltage Us at AC 50HZ
    24
  • Rated control supply voltage Us at AC 60HZ
    24
  • Voltage type for actuating
    EV000509
  • Rated control supply voltage Us at DC
    24
  • Height
    90
  • Depth
    73
  • With semiconductor output
    FALSE
  • Function delay on de-energization
    FALSE
  • Pluggable on auxiliary contact block
    FALSE
  • Clock function, starting with pause, variable
    FALSE
  • Clock function, starting with pulse, variable
    FALSE
  • Number of outputs, undelayed, normally open contact
  • Number of outputs, undelayed, normally closed contact
  • Function floating contact on de-energization
    FALSE
  • Function delay-on energization
    FALSE
  • Suitable for DIN rail (top hat rail) mounting
    TRUE
  • Outputs, reversible delayed/undelayed
    FALSE
  • With plug-in socket
    FALSE
  • Function star-delta
    FALSE
  • Function flashing, starting with pause, fixed time
    FALSE
  • Function flashing, starting with pulse, fixed time
    FALSE
  • Remote operation possible
    FALSE
  • Suitable as remote control
    FALSE
  • Number of outputs, undelayed, change-over contact
  • Function pulse shaping
    FALSE
  • Width
    22.5
  • Number of outputs, delayed, change-over contact
    1
  • Function floating contact on energization
    TRUE
  • Nominal current
    8
  • Number of outputs, delayed, normally open contact
    1
  • Number of outputs, delayed, normally closed contact
    1
  • Time range
    0.05

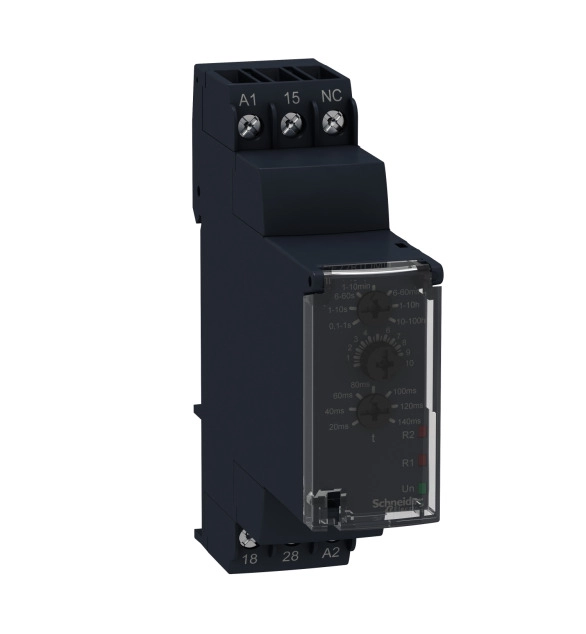

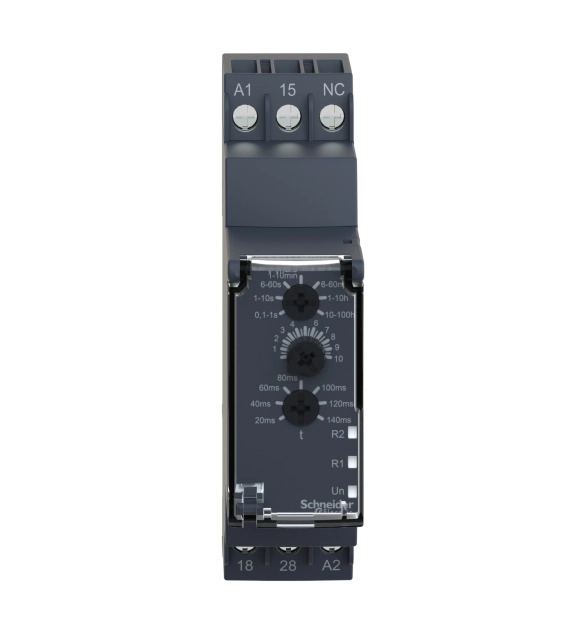

This Harmony RE22 modular dual function timer can be set between 0.05 seconds and 300 hours, has an output rating of 8 amperes and it is 22.5 millimeters wide. It provides function A and function Aw and it is mountable on DIN rail. This modular dual function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Selectable timing range offers a one stop solution for your power management system. Dual function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC.
