Честотен регулатор, Altivar Process ATV900, ATV930, 7,5 kW, 380...480 V, cabinet Integration, IP20 | Spark & Co
  • 3D
|

СКУ: ATV930U75N4Z

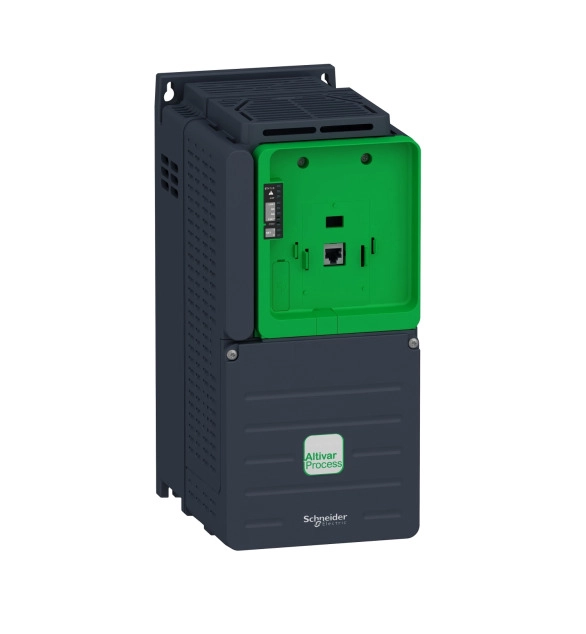

Честотен регулатор, Altivar Process ATV900, ATV930, 7,5 kW, 380...480 V, cabinet Integration, IP20

  • Brand
    Schneider Electric
  • Supporting protocol for SERCOS
    FALSE
  • Supporting protocol for INTERBUS-Safety
    FALSE
  • Supporting protocol for AS-Interface Safety at Work
    FALSE
  • Supporting protocol for DeviceNet Safety
    FALSE
  • Supporting protocol for Foundation Fieldbus
    FALSE
  • Supporting protocol for SafetyBUS p
    FALSE
  • Supporting protocol for PROFINET CBA
    FALSE
  • Supporting protocol for PROFIsafe
    FALSE
  • Supporting protocol for ASI
    FALSE
  • Supporting protocol for TCP/IP
    FALSE
  • Supporting protocol for KNX
    FALSE
  • Supporting protocol for INTERBUS
    FALSE
  • Supporting protocol for Modbus
    FALSE
  • Supporting protocol for Data-Highway
    FALSE
  • Supporting protocol for LON
    FALSE
  • Supporting protocol for other bus systems
    TRUE
  • Supporting protocol for SUCONET
    FALSE
  • Width
    600
  • Degree of protection (IP)
    EV006419
  • With control element
    TRUE
  • With optical interface
    FALSE
  • Number of HW-interfaces parallel
  • Number of interfaces PROFINET
  • Number of HW-interfaces other
  • Number of HW-interfaces serial TTY
  • Supporting protocol for EtherNet/IP
    TRUE
  • Supporting protocol for CAN
    TRUE
  • Number of HW-interfaces RS-422
  • Number of HW-interfaces industrial Ethernet
  • Number of analogue outputs
    2
  • Number of digital inputs
    8
  • Number of HW-interfaces USB
  • Number of HW-interfaces RS-232
  • Number of digital outputs
    1
  • With PC connection
    FALSE
  • Supporting protocol for BACnet
    FALSE
  • Supporting protocol for PROFIBUS
    TRUE
  • Supporting protocol for DeviceNet
    TRUE
  • Type of converter
    EV009484
  • Max. output frequency
    500
  • Mains frequency
    EV008015
  • Number of phases input
    EV000069
  • Number of phases output
    EV000069
  • Relative symmetric net voltage tolerance
    10
  • Relative symmetric net frequency tolerance
    5
  • Integrated breaking resistance
    FALSE
  • Application in industrial area permitted
    TRUE
  • Application in domestic- and commercial area permitted
    TRUE
  • Mains voltage
    380
  • Supporting protocol for PROFINET IO
    TRUE
  • Number of analogue inputs
    3
  • 4-quadrant operation possible
    TRUE
  • Number of HW-interfaces RS-485
    3
  • Max. output at quadratic load at rated output voltage
    250
  • Max. output at linear load at rated output voltage
    250
  • Nominal output current I2N
    477
  • Max. output voltage
    440
  • Height
    2350
  • Depth
    669

EcoFit Replacement Drive Kit is a self-modernization solution including all hardware and software required to modernize a legacy Altivar 61/71 drive The Ecofit Replacement Drive Kit includes a replacement Variable Speed drive, wiring combo, adaptor plate, and extended warranty, in addition to a temporary license to convert the equipment parameterization through SoMove The Replacement Drive is the major Kit component which is compatible with 3-phase synchronous and asynchronous power motors It operates at rated supply Voltage of 380V to 480V AC It provides up to 30% energy savings in standby mode via ‘‘Stop and Go’’ operation The Kit component Wiring combo facilitates easy conversion from old to new wiring during rewiring The Kit component Adaptor plate allows reuse of old drive fixing holes in the electrical cabinet The kit component Extended warranty adds 1 year coverage after standard warranty expiration
