СКУ: NSYPLM32G

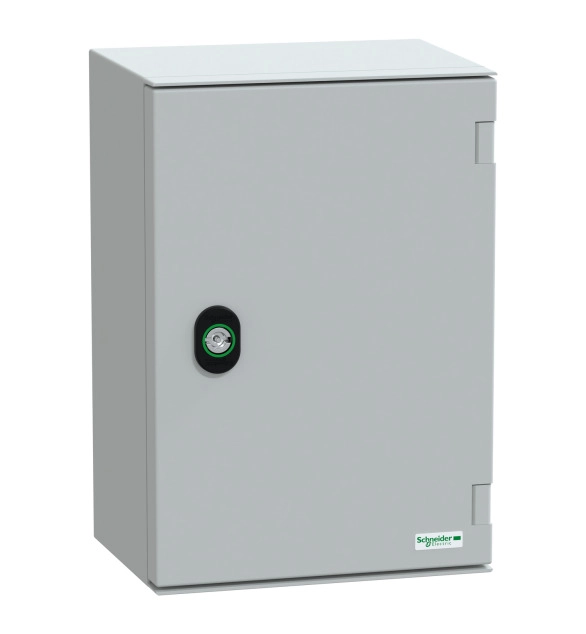

SCHNEIDER ELECTRIC Wall mounted ABS + PC enclosure, plain door, 310x215x160mm, IP66 /CF-26-02263/
-
Brand
Schneider Electric
-
Material
EV000139
-
With mounting plate
FALSE
-
EMC-version
FALSE
-
RAL-number
7035
-
Colour
EV000270
-
Depth
160
-
With glazed door
FALSE
-
Number of doors
1
-
With backside door
FALSE
-
Material quality
EV000154
-
Height
310
-
Degree of protection (NEMA)
EV014040
-
Degree of protection (IP)
EV006422
-
Connectable
FALSE
-
Width
215
-
Detached
FALSE
-
Pitched roof
FALSE
-
Intermediate mounting
FALSE
-
Corner model
FALSE
-
With ventilation door
FALSE
-
Suitable for wall mounting
TRUE
-
Impact strength
EV008784
-
Suitable for outdoor set-up
TRUE
-
Surface finishing
EV006034
-
Number of locks
1
-
Suitable for wall built-in
TRUE
-
Max. permissible load of the mounting plate according to IEC 62208
55
-
Mounting plate depth-adjustable
TRUE
-
Pole fastening
TRUE
-
Max. permissible load of the enclosure according to IEC 62208
113
-
Max. permissible load of the door(s) according to IEC 62208
18
This PLM is a wall-mounted enclosure that is suitable for multi-purpose applications The enclosure has a nominal height, width, and depth of 310 mm, 215 mm, and 160 mm, respectively It is made of ABS + PC, which offers durability and resistance to industrial environments The enclosure comes in a grey (RAL 7035) color The enclosure consists of one body, one door, and one lock The door is plain and can be opened from the front and has a 3 mm double-bar lock The enclosure offers high protection against dust and water with an IP66 rating (IEC 60529) It is also highly resistant to impacts, with an IK10 rating (IEC 62262), and offers protection against electric shocks with a class II electrical insulation rating The enclosure is UL certified and can be stored in ambient air temperatures ranging from -40 to 80°C without affecting its performance It meets the NEMA classification 4X, IEC 62208, and NEMA classification 13 standards
