СКУ: VW3A46108
Пасивен филтър - 60 A - 400 V - 50 Hz - за честотен регулатор
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Max. rated operation voltage Ue
400
-
Rated operation frequency
50
-
Suitable as radio interference suppression filter
FALSE
-
Suitable as audio frequency blockage
FALSE
-
Number of poles, primary side
3
-
Suitable as du/dt-filter
FALSE
-
Suitable as sinus filter
FALSE
-
Rated current at AC
58
-
Max. rated current (Ith) at rated voltage DC
58

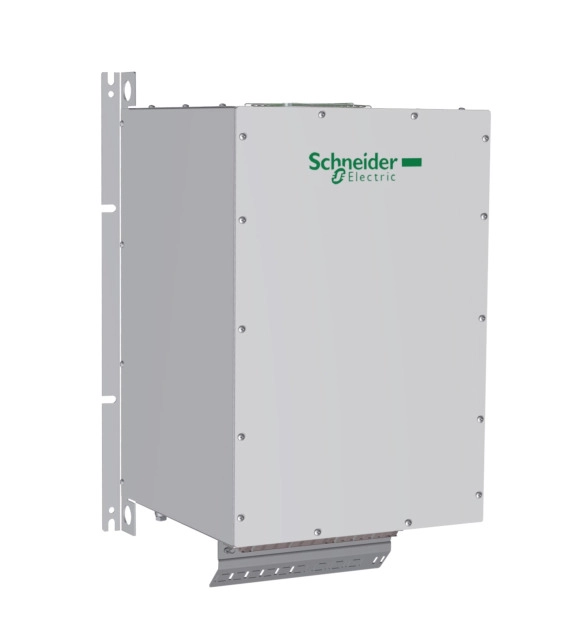

This passive filter is an option for variable speed drives of Altivar range. Its rated current is equal to 60A. It is used as an input filter in order to obtain total harmonic distortion of less than 10% or 5%. Its protection index is IP20. It weighs 44kg and its dimensions are, 378mm wide, 623.6mm high, 333mm deep. It is designed to be used for drives in the first environment (restricted distribution, domestic applications).
