"АВР превключвател, TransferPacT Автоматичен, 160A, 4P, Въртяща се ръкохватка, корпус 160A" | Spark & Co
  • 3D
|

СКУ: TA16D4S1604TPE

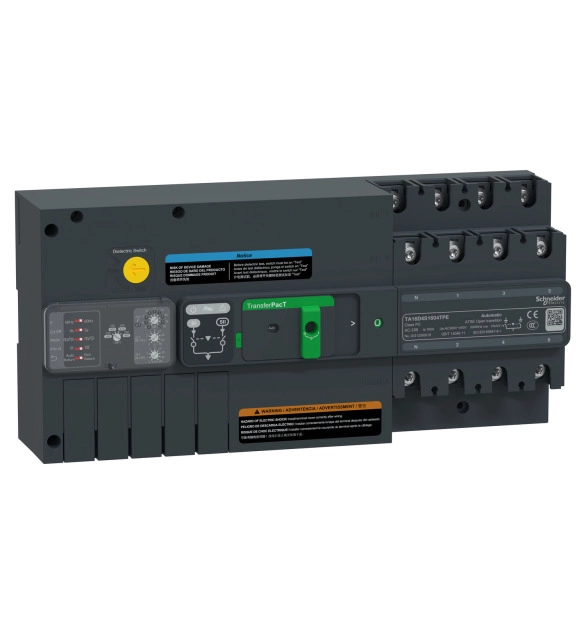

"АВР превключвател, TransferPacT Автоматичен, 160A, 4P, Въртяща се ръкохватка, корпус 160A"

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Number of poles
    3
  • Degree of protection (IP), front side
    EV006405
  • Model
    EV000154
  • Suitable for distribution board installation
    TRUE
  • Material housing
    EV000139
  • Suitable for floor mounting
    TRUE
  • With zero (off) position
    TRUE
  • With retraction in 0-position
    FALSE
  • Complete device in housing
    TRUE
  • Suitable for front mounting
    FALSE
  • Rated permanent current Iu
    1000
  • Type of control element
    EV000154
  • Number of auxiliary contacts as change-over contact
    3

This TA63D4S3204TPE is a low voltage power transfer switch used in industrial and commercial buildings, data centers, healthcare facilities and transportation industry. The rated operational voltage(Ue) is 400VAC@50/60Hz. This change source is AC-33B utilization category. The rated current(Ie) can be loaded 320A(Ie) at 60℃, with 630A frame. The front has an inbuilt rotary display module which can be used for local control and setting, controlled by rotary/dip switch. This transfer switch provided 3 contact postion to the front by mechanical and electrical indication. It can be fixed on the plate and position it inside of power distribution cabinet. It also has some optional accessories in terms of different application scene. This 4poles version is 467mm(width)x341mm(height)x185.8mm(depth). It is compliance with standard IEC 60947-6-1, and certified by CE/CB/CCC. It is suitable for power transfer of life safety loads like Fire-fighting equipment, Smoke Extract Fans, Sprinkler pumps,emergency lights etc.
