СКУ: 56135
Реле за защита от остатъчен ток RH10M - 300 mA - 240 V
-
Brand
Schneider Electric
-
Number of contacts as normally open contact
1
-
Type of electric connection
EV000415
-
Voltage type for actuating
EV000460
-
Number of contacts as change-over contact
1
-
Error registration possible
FALSE
-
Indication of difference current
FALSE
-
Function
EV005827
-
With detachable clamps
FALSE
-
Width
54
-
Rated frequency
50
-
Depth
74
-
Height
97
-
Max. permitted delay-on energization time
0.04
-
Response value amperage 1
300
-
Rated control supply voltage Us at AC 50HZ
110
-
Rated control supply voltage Us at AC 60HZ
110
-
Number of contacts as normally closed contact
-
Rated voltage
-
Min. adjustable delay-on energization time

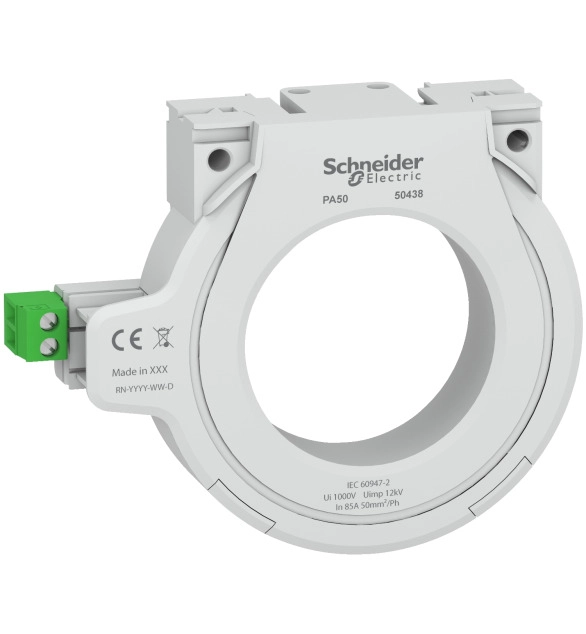

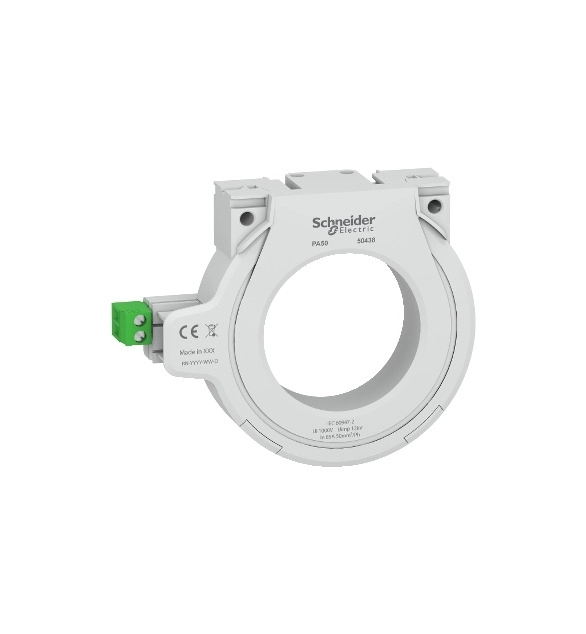

VigiPacT RH10P is a front panel mounting residual current protection relay. It protects against people direct or indirect contact, property fire hazards and motors. It measures the earth leakage current in an electrical installation via its associated toroid. It trips the associated circuit breaker when the set residual operation current is overrun. The operational supply voltage is 110/130VAC 50/60Hz. It is a type A earth-leakage protection class. The current sensitivity (IDn) is fixed to 300mA. The time delay (Dt) is instantaneous. It requires a local manual reset after a fault clearance. The monitored distribution system voltage is up to 1000VAC 50/60/400Hz. It is installed on a front panel switchboard and the protection degree is IP40. It must be associated with a compatible Schneider Electric type A toroid or rectangular sensor.
