СКУ: OVA48020

Аварийно осветително тяло, Exiway Smartduo, Activa, 1h, 2x1200lm, неподдържано, черно

  • Brand
    Schneider Electric
  • Lamp holder
    EV000494
  • Number of poles
    2
  • Material housing
    EV000139
  • Degree of protection (IP)
    EV006421
  • Nominal voltage
    230
  • Voltage type
    EV000460
  • With light source
    TRUE
  • Lamp type
    EV011515
  • Power supply system
    EV009693
  • Luminaire with limited surface temperature, sign "D“
    FALSE
  • Conductor cross section
    2.5
  • With pictogram
    FALSE
  • Exchangeable control gear
    FALSE
  • Type of control gear
    EV005787
  • Light distributor
    EV014411
  • Constant light output (CLO)
    FALSE
  • Impact strength
    EV006813
  • Width
    400
  • Protection class
    EV000583
  • Nominal operation time
    1
  • Monitoring equipment
    EV009635
  • Material cover
    EV006823
  • Connection type
    EV000414
  • Type of wiring
    EV015019
  • Rated life time L70/B50 at 25 °C
    100000
  • Function
    EV014457
  • LED nominal current at constant current
    120
  • Mounting method
    EV013927
  • Colour temperature
    4750
  • Rated ambient temperature according to IEC62722-2-1
    -5
  • With remote switch connection
    TRUE
  • With remote control
    TRUE
  • Battery quality
    EV000154
  • Length
    170
  • Colour housing
    EV000206
  • Height/depth
    253
  • Max. system power
    1.5
  • Suitable for number of lamps
    6
  • Rated luminous flux according to IEC 62722-2-1
    2400
  • Power factor
    0.05
  • Wiring system
    EV009649
  • Rated life time L80/B10 at 25 °C
    100000

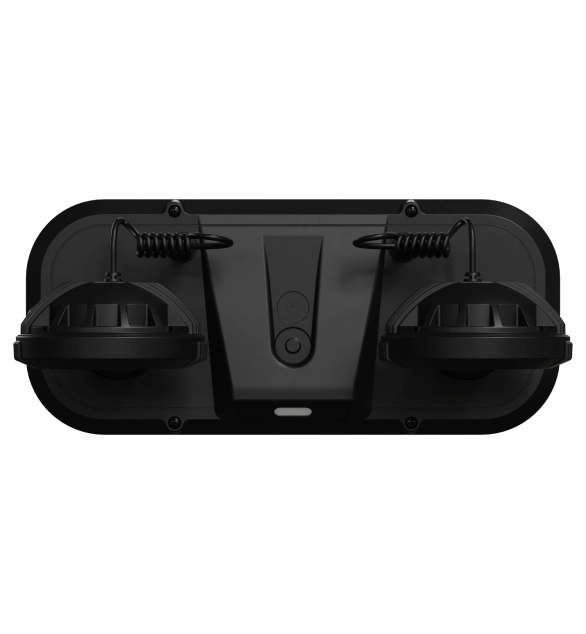

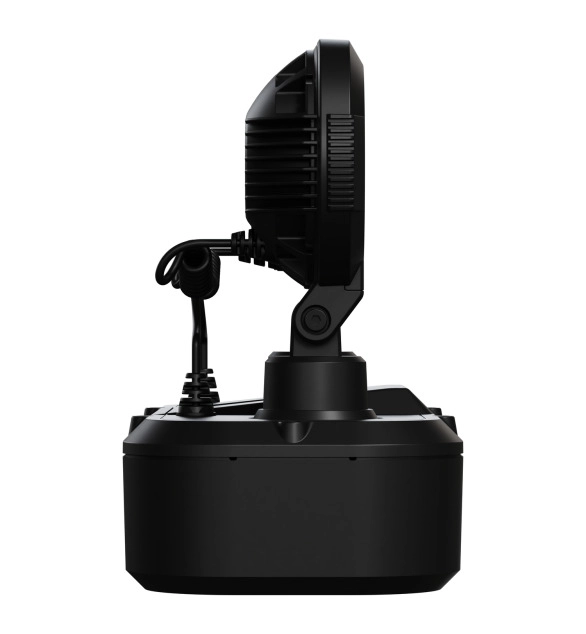

Discover the Exiway Smartduo, a modern emergency addressable lighting solution designed from Schneider Electric. This luminaire is responsible for providing lighting and avoiding the panic of complete darkness. It allows a change in luminous flux direction. The functional test can be activated by a commercially available laser pointer. This device has 2 adjustable headlights. Test differentiation is based on random group generation to avoid all luminaires could be discharged after a test. Its Ue rated operational voltage is 230VAC at 50/60Hz. The active power is 1.5W and the apparent power during recharge is 11VA. This device can be mounted on the wall or ceiling. The dimensions of the product are (W) 400mm x (H) 253mm x (D) 170mm. It is made up of polycarbonate (PC). The color of the product is black. Operation temperature is from 0°C up to 40°C, and it reaches IP65 degree of protection. Exiway Smartduo range with dual headlights is suitable for high ceilings or special applications. Developed to ensure safe evacuation of all buildings and high risks areas. The product complies with the EN 62034, EN 60598-2-22 standards and it has LCIE product certification.
