Авт. прекъсвач, ComPacT NS800LB, 200kA при 415VAC, 800A, 4P, фиксиран, ръчно управление, без контролно у-во

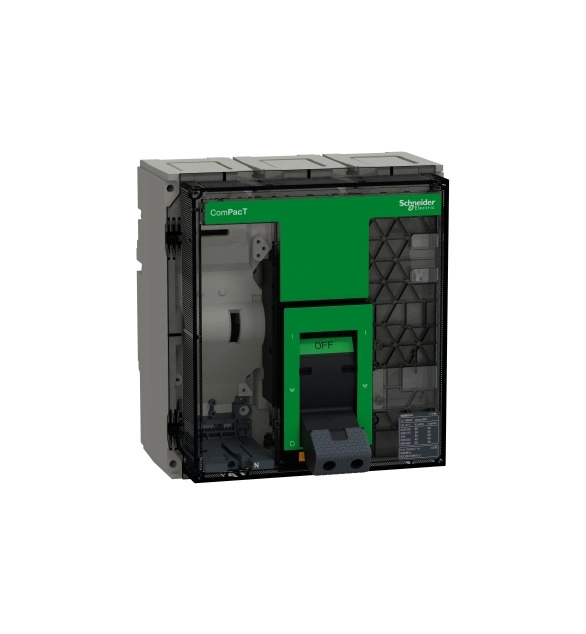

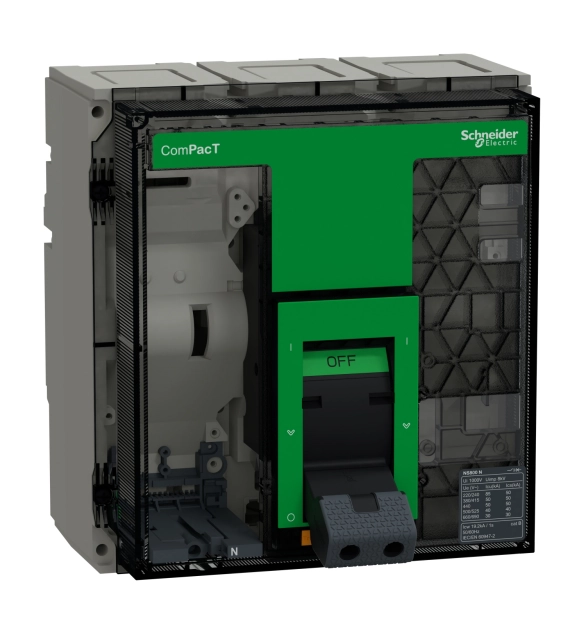

This product is a 4 poles ComPacT NS800H circuit breaker frame. This device is withdrawable and is manually operated. This breaker frame is not equipped with a control unit, which has to be ordered separately through the ComPacT NS product selector. This breaker frame has to be installed inside a chassis, which has to be ordered separately through the ComPacT NS product selector. ComPacT NS is designed to optimize space and breaking capacity, it is an optimal choice for all standard and specific applications. The operational current is 800A. The operational voltage is 690VAC 50/60Hz. The breaking capacity (Icu) is 70kA rms at 415VAC 50/60Hz. The circuit breaker is manually operated with its toggle. The operational current is 800A. This product comes with a variety of optional functions and accessories. This product comes with a variety of optional functions and accessories. The dimensions (without the toggle) are 260mm (Heigh) x 306mm (Width) x 147mm (Depth). It is compliant with IEC 60947-1 and IEC60947-2 international standards. ComPacT NS can be integrated within Schneider Electric EcoStruxure Power architecture. ComPacT NS is part of the global Schneider Electric Environmental Program.
