СКУ: C063B3FM

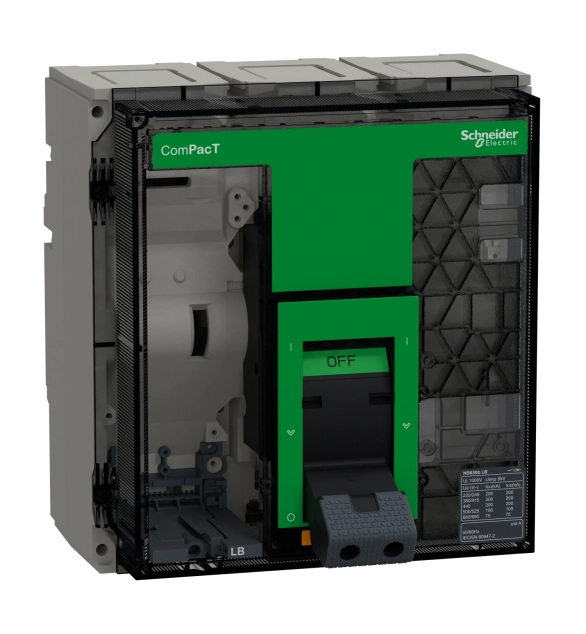

Авт. прекъсвач, ComPacT NS630bLB, 200kA при 415VAC, 630A, 3P, фиксиран, ръчно управление, без контролно у-во
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Number of poles
3
-
Device construction
EV009211
-
Motor drive integrated
FALSE
-
Degree of protection (IP)
EV006415
-
Rated permanent current Iu
630
-
Complete device with protection unit
FALSE
-
Type of control element
EV000421
-
DIN rail (top hat rail) mounting optional
FALSE
-
Rated voltage
690
-
Position of connection for main current circuit
EV007926
-
Integrated earth fault protection
FALSE
-
Motor drive optional
TRUE
-
Suitable for DIN rail (top hat rail) mounting
FALSE
-
With switched-off indicator
TRUE
-
With integrated under voltage release
FALSE
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
200
-
Number of auxiliary contacts as normally closed contact
-
Number of auxiliary contacts as change-over contact
-
Number of auxiliary contacts as normally open contact
This product is a 3 poles ComPacT NS630bLB circuit breaker frame. This device is in fixed mounting mode and is manually operated. This breaker frame is not equipped with a control unit, which has to be ordered separately through the ComPacT NS product selector. It is a 3 poles breaker frame for ComPacT NS630bLB without control unit designed to optimize space and breaking capacity. ComPacT NS is designed to optimize space and breaking capacity, it is an optimal choice for all standard and specific applications. The operational current is 630A. The operational voltage is 690VAC 50/60Hz. The breaking capacity (Icu) is 200kA rms at 415VAC 50/60Hz. The circuit breaker is manually operated with its toggle. The operational current is 630A. This product comes with a variety of optional functions and accessories. This product comes with a variety of optional functions and accessories. The dimensions (without the toggle) are 224mm (Heigh) x 210mm (Width) x 147mm (Depth). It is compliant with IEC 60947-1 and IEC60947-2 international standards. ComPacT NS can be integrated within Schneider Electric EcoStruxure Power architecture. ComPacT NS is part of the global Schneider Electric Environmental Program.
