СКУ: A9XPC612
Захранващ гребен iC40 1PN 12 модула 18MM
-
Brand
Schneider Electric
-
Rated permanent current Iu
80
-
Number of poles
2
-
Colour
EV000202
-
Width in number of modular spacings
12
-
Insulated
TRUE
-
Number of phases
1
-
Type of electric connection
EV000158
-
Suitable for devices with auxiliary switch
FALSE
-
Suitable for devices with N-conductor
TRUE
-
Module width
9
-
Max. rated operation voltage Ue
230
-
Suitable for number of devices
12
-
Length
272

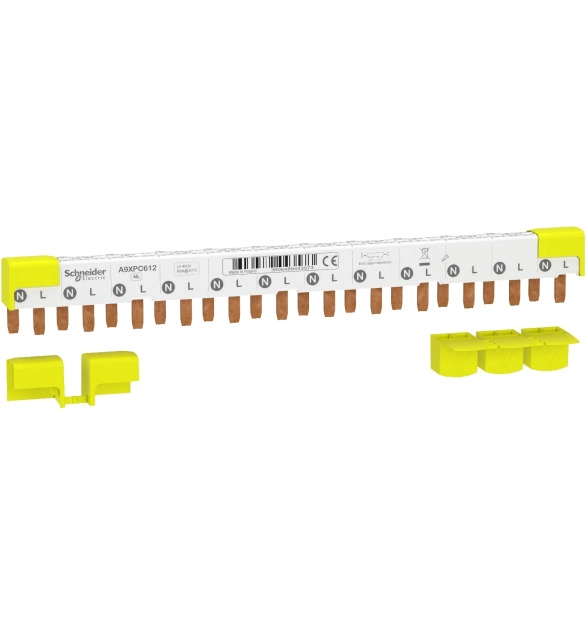

This Acti9 product is a cuttable horizontal comb busbar for Acti9 iC40. It is dedicated to (Neutral, Line) installations. The distribution type is (N, L1). It is a set of 1 product. It is suitable for 12 devices with 1P+N pole and without associated auxiliaries. The length is 218mm. The total number of modules of 18mm is 12. The Ie rated operational current at 40°C is 80A. The Ui rated insulation voltage is 400VAC. The Ue rated operational voltage is 230VAC. The color of the device is white (RAL 9003). The pollution degree is 3. The degree of protection is IP20 with end-pieces and tooth covers. According to IEC 60695-2-1 standard, the fire resistance is self-extinguishing at 960°C within 30s. It complies with EN/IEC 61439-1 standard.
