GVL MBPsingle 200-500 kW 400V, Backfd | Spark & Co
  • 3D
  • 3D
|

СКУ: GVLMBCA200K500H

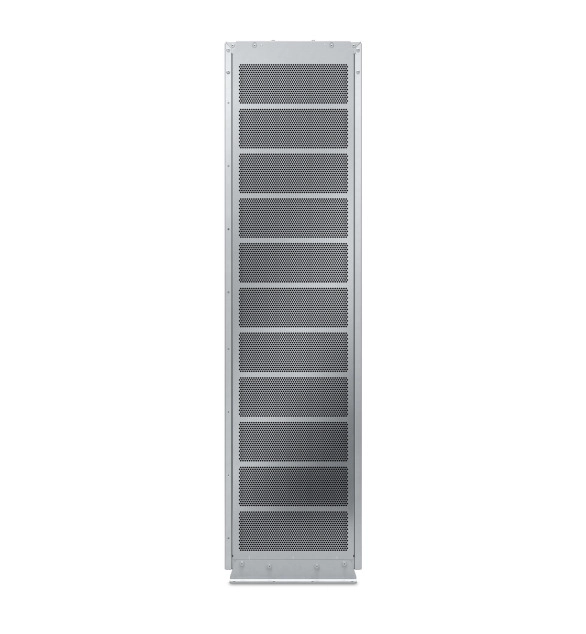

GVL MBPsingle 200-500 kW 400V, Backfd

  • Brand
    Schneider Electric
  • Voltage type
    EV000460
  • Potential free switch contact
    TRUE
  • SNMP
    TRUE
  • Number of output connections C19
  • Number of output connections with protective contact (SCHUKO)
  • Overall efficiency
    96
  • With communication interface RS-232
    FALSE
  • Auto shut down function
    FALSE
  • Primary frequency
    50
  • Secondary frequency
    50
  • Construction type
    EV000870
  • Number of output connections French standard (Type E)
  • Width
    550
  • Suitable for network-management
    TRUE
  • USB interface
    TRUE
  • Max. voltage distortion output (linear load)
    3
  • USV- technology
    EV007607
  • Number of output connections C13
  • Input connection
    EV000154
  • Height
    1970
  • Output power factor
    1
  • Modular
    TRUE
  • Number of output connections fixed connection
    1
  • Depth
    847
  • Weight
    250
  • Input voltage
    380
  • Number of phases primary
    3
  • Number of phases secondary
    3
  • Output voltage
    380
  • Efficiency in eco-mode
    99
  • Output apparent power
    100000
  • Output effective power
    100000

VarPlus Can capacitor are a reliable and flexible solution for power factor correction in stringent operating conditions. These capacitors are particularly used for higher voltage disturbances or when a few non-linear loads are present. The rated current of the capacitors must be in increased in order to cope with the circulation of the harmonic current. This capacitor provides a rated output power of 12.5 kVar at 525V AC, 50 Hz. Fastening assured by a ClampTite terminal. This component meet the standards IEC 60831-1 and IEC 60831-2. The case product weight is 1.6 kg.
