СКУ: A9XPH512
Acti 9 - захранваща шина - 3L+N balanced - 18 mm щифт - 12 модули - 100 A
-
Brand
Schneider Electric
-
Colour
EV000202
-
Width in number of modular spacings
12
-
Insulated
TRUE
-
Cross section
16
-
Type of electric connection
EV000158
-
Suitable for devices with N-conductor
TRUE
-
Number of phases
3
-
Number of poles
4
-
Rated permanent current Iu
100
-
Suitable for devices with auxiliary switch
TRUE
-
Module width
18
-
Max. rated operation voltage Ue
415
-
Length
220
-
Suitable for number of devices
6

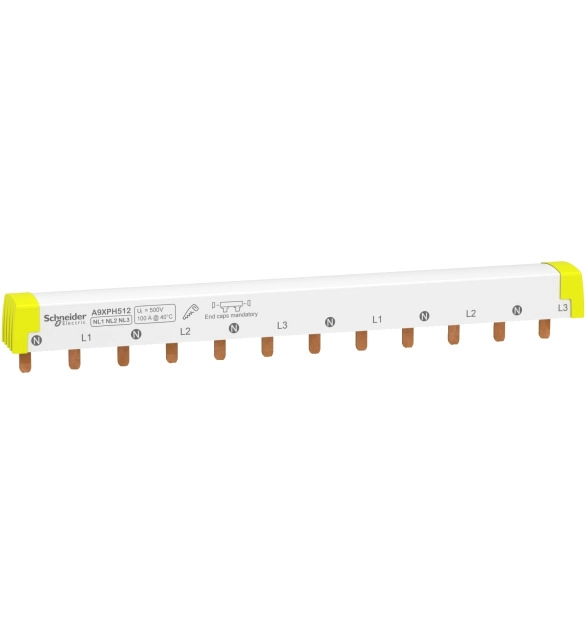

This Acti9 product is a cuttable horizontal comb busbar 12 modules for Acti9 C60. It is dedicated to 3(N+L) installations. The type is NL1NL2NL3 (Neutral, Line). It is a set of 1 device. It is suitable for 6 devices (1P+N). The length is 220mm.The total number of modules of 18mm is 12. The number of phase is 3. The number of poles is 4. The Ie rated operational current at 40°C is 100A. The Isc short circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers. The Ui rated insulation voltage is 500VAC. The Ue rated operational voltage is 415VAC. The color of the device is anthracite grey RAL7016. The pollution degree is 3. According to IEC 60695-2-1 standard the fire resistance is self-extinguishing at 960°C within 30s.
