СКУ: EZ9XPH612

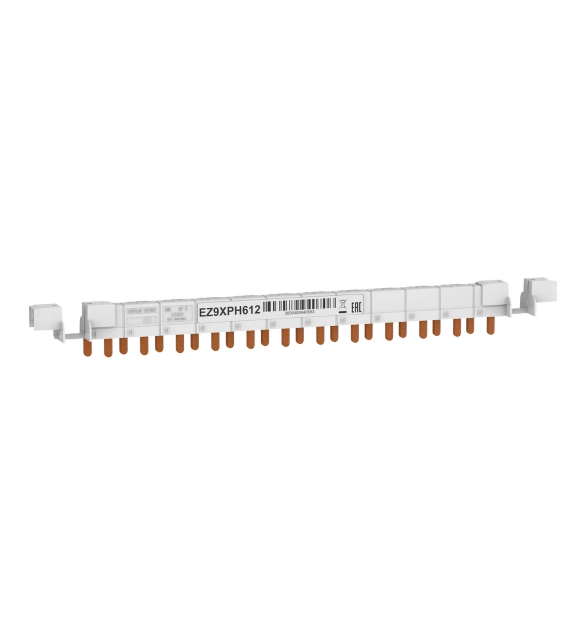

Захранващ гребен, Easy9 XP, 1P+N, 63 A, 12 модула
-
Brand
Schneider Electric
-
Rated permanent current Iu
63
-
Number of poles
2
-
Colour
EV000270
-
Width in number of modular spacings
12
-
Insulated
TRUE
-
Number of phases
1
-
Type of electric connection
EV000158
-
Suitable for devices with auxiliary switch
FALSE
-
Suitable for devices with N-conductor
FALSE
-
Module width
9
-
Max. rated operation voltage Ue
230
-
Length
220
-
Suitable for number of devices
12
This Easy9 product is a horizontal comb busbar 12 modules. It is dedicated to 1L+N installations. It is a set of 1 device. It is suitable for 6 devices (1P+N or 2P). This comb busbar is compatible with Easy9 MCB, RCCB, RCBO and switch products. The total number of modules of 18mm is 12. The Ue rated operational voltage is 230VAC (phase to neutral). The Ui rated insulation voltage is 500VAC. The operating frequency is 50Hz. Its width is 24 pitches of 9mm. The color is light grey (RAL7035). The degree of protection is IP20. The pollution degree is 3. According to IEC 60695-2-1 standard, the fire resistance is self-extinguishing at 850°C within 30s.
