LXM32A сервозадвижване CAN RJ45 30A RMS 3PH 4 | Spark & Co
  • 3D
|

СКУ: LXM32CD30N4

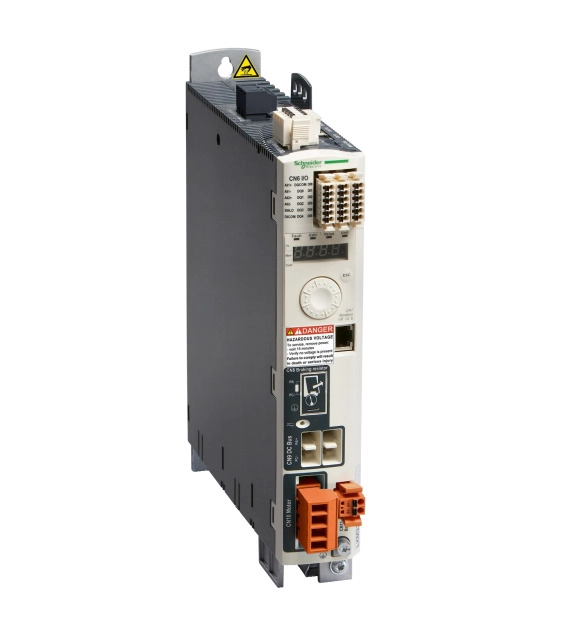

LXM32A сервозадвижване CAN RJ45 30A RMS 3PH 4

  • Brand
    Schneider Electric
  • Degree of protection (IP)
    EV006405
  • Supporting protocol for SERCOS
    FALSE
  • Supporting protocol for INTERBUS-Safety
    FALSE
  • Supporting protocol for AS-Interface Safety at Work
    FALSE
  • Supporting protocol for DeviceNet Safety
    FALSE
  • Supporting protocol for EtherNet/IP
    FALSE
  • Supporting protocol for Foundation Fieldbus
    FALSE
  • Supporting protocol for SafetyBUS p
    FALSE
  • Supporting protocol for PROFINET CBA
    FALSE
  • Supporting protocol for PROFINET IO
    FALSE
  • Supporting protocol for PROFIsafe
    FALSE
  • Supporting protocol for ASI
    FALSE
  • Supporting protocol for PROFIBUS
    FALSE
  • Supporting protocol for TCP/IP
    FALSE
  • Supporting protocol for KNX
    FALSE
  • Supporting protocol for INTERBUS
    FALSE
  • Supporting protocol for DeviceNet
    FALSE
  • Supporting protocol for Data-Highway
    FALSE
  • Supporting protocol for LON
    FALSE
  • Supporting protocol for SUCONET
    FALSE
  • Supporting protocol for other bus systems
    FALSE
  • With control element
    TRUE
  • With optical interface
    FALSE
  • Number of HW-interfaces parallel
  • Number of interfaces PROFINET
  • Number of HW-interfaces other
  • Number of HW-interfaces serial TTY
  • Supporting protocol for Modbus
    TRUE
  • Supporting protocol for CAN
    TRUE
  • Number of HW-interfaces RS-422
  • Number of HW-interfaces RS-485
    1
  • Number of HW-interfaces industrial Ethernet
    1
  • Number of analogue outputs
    1
  • Number of HW-interfaces USB
  • Number of HW-interfaces RS-232
  • Width
    68
  • Number of digital inputs
    6
  • Supporting protocol for BACnet
    FALSE
  • Number of digital outputs
    2
  • Mains frequency
    EV008015
  • Number of phases input
    EV000069
  • Relative symmetric net voltage tolerance
    10
  • Relative symmetric net frequency tolerance
    5
  • Integrated breaking resistance
    FALSE
  • Application in industrial area permitted
    TRUE
  • 4-quadrant operation possible
    FALSE
  • With PC connection
    TRUE
  • Application in domestic- and commercial area permitted
    TRUE
  • Nominal output current I2N
    10
  • Number of analogue inputs
    3
  • Max. output at quadratic load at rated output voltage
    3
  • Max. output at linear load at rated output voltage
    3
  • Type of converter
    EV000154
  • Max. output frequency
    8
  • Height
    270
  • Depth
    237
  • Number of phases output
    EV000154
  • Max. output voltage
    400
  • Mains voltage
    208

PM3210 DIN mount energy meter with a 128 by 96 pixel backlit, LCD display. The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 32 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor, Apparent Power, Total Harmonic Distortion and up to 15th Harmonic. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 277VAC, 173 to 480VAC and 100 to 300VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase, Single Phase and Neutral or Three Phase configurations. Direct measurement range is 50 to 570VAC, with an external VT 570 to 999000VAC. The range of measurement voltage between Phases is 80 to 570VAC at 45 to 65 Hz. Measurement range between Phase and Neutral is 50 to 330VAC at 45 to 65 Hz. This meter has no communication input capability. Support for one digital output. The meter offers event recording with up to 5 alarms. Product dimensions are as follows: width 3.54 in (90 mm), depth 2.76in (70 mm), height 3.74 in (95 mm) and product weight 9.17 oz (260 g).
