Задвижване стъпково

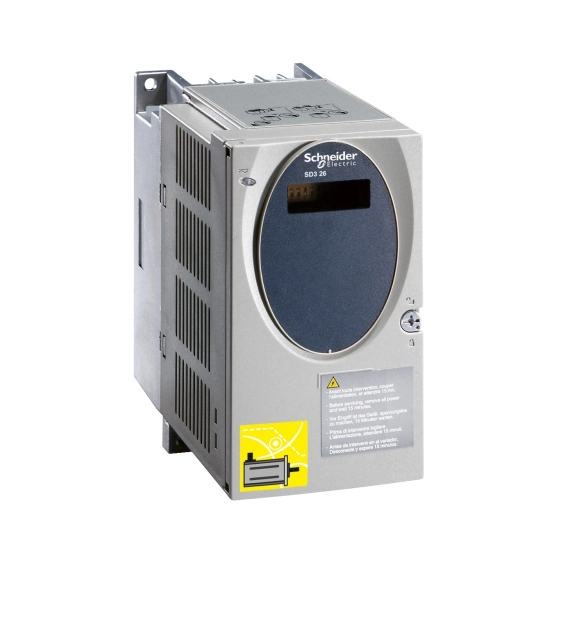

This product is part of the Lexium SD3 and motors an offer of 3-phase stepper drives and stepper motors. The 3-phase stepper motor drive with an integrated pulse/direction communication interface. High torque is available even at low speeds.  It is a motor drive with a rated supply voltage of 100V to 120V, 200V to 230V, a motor phase current of 2.5A, a nominal power of 270W at 230V and maximum mechanical speed of motor drive is 3000RPM. It is provided with natural convection cooling method. It is an IP20 and IP40 rated product. Its dimensions are 72mm (Width) x 140mm (Depth) x 145mm (Height). It weighs 1.1kg. The Lexium SD3 with its excellent constant velocity characteristics is ideal for applications such as printing, paper, packaging, handling, labelling, textile industry, scanning, food and beverages. This product is certified by CUL, CE and UL. It meets EN/IEC 50178, EN/IEC 61800-3 environment 1, EN/IEC 61800-3 environment 1, EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. The SD3 is an universally applicable stepper motor drive. The package is ready for operation within a very short period of time. Connect the stepper motor to the drive, set the current and step resolution. Stepper drives and stepper motors for motion control.
